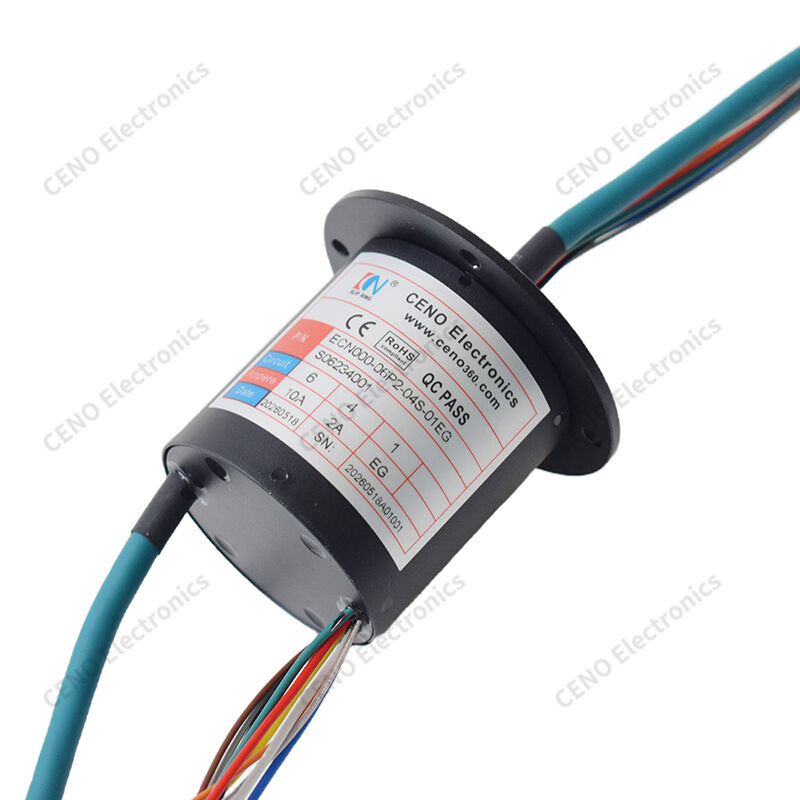

Ethernet Slip Ring with Gold Contact for Power and Ethernet
ECN000-06P2-04S-01EG is CENO flange mount ethernet slip ring combines power circuits, sensor signals and Ethernet pathway for 360° continuous rotating transmission. Built with gold-on-gold multi-point contact design, it ensures stable electrical performance with low contact resistance and minimal noise. CNC aluminum housing offers high rigidity and anti-corrosion property. Each unit passes complete dynamic tests prior to delivery. Compliant with CE and RoHS standards, it supports bulk supply and custom adjustment for OEM manufacturers, perfect for rotary equipment needing concurrent power and network signal transmission.
Features
- Gold contacts
- Low resistance
- Long service life
- Flange mounting
- Wide temp range
Applications
- Security pan-tilt
- Automation turntable
- Robot joint
- Test rotary table
- Rotating monitoring device
Optional
- Wire gauge
- Channel config
- IP upgrade
- Custom leads
- OEM marking
Specification
|
ECN000-06P2-04S-01EG
|
Specification
|
|
Protection(IP Grade)
|
IP51
|
|
Working Humidity
|
60%RH
|
|
Working Temperature
|
-50℃~+60℃
|
|
Lead Wire Size
|
AWG17#Wire Teflon UL, CAT6
|
|
Rating Voltage
|
0~220VAC/VDC
|
|
Circuits & Current
|
6 Circuits * 10A, 4 Circuits * 2A(Signal), 1 Group * 1000M Ethernet
|
|
Dielectric Strength
|
≥1000VAC@50Hz(Power), 300VAC@50Hz(Signal)
|
|
Insulation Resistance
|
500MΩ@500VDC(Power),100MΩ@300VDC(Signal)
|
|
Electrical Noise
|
Max 30mΩ
|
|
Lead Wire Length
|
Rotor: 300mm, Stator:300mm
|
|
Working Speed
|
0~100rpm
|
|
Rotation Way
|
Stator side flange installation
|
|
Contact Material
|
Precious Metal/Gold to gold
|
|
Housing Material
|
Aluminum Alloy
|
Outline drawing
