Ethernet Slip Ring with Vibration Resistant Gold Contacts for Rotary Equipment

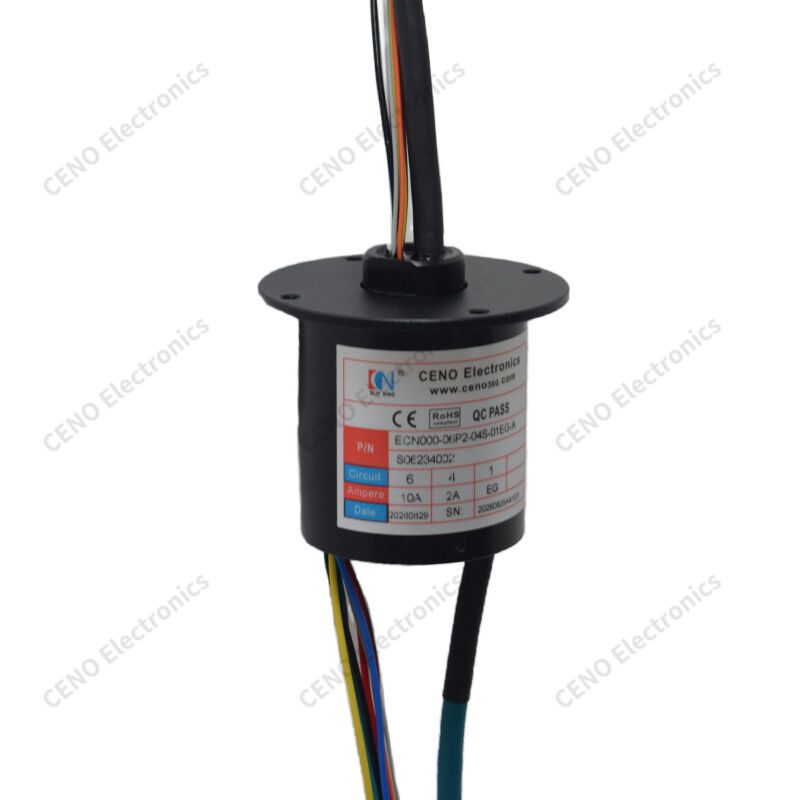

ECN000-06P2-04S-01EG-A is CENO flange-type ethernet slip ring enables simultaneous delivery of power, discrete signals and Ethernet signals while rotating infinitely at 360 degrees. Its refined gold contact structure minimizes signal fluctuation and crosstalk between power and network circuits. Precision machined aluminum shell enhances structural stability against vibration. Every unit undergoes strict dynamic performance inspection before shipment. It carries CE and RoHS certifications, supports mass production and custom tuning for system integrators, ideal for rotary equipment that needs uninterrupted power and network communication.
Features
- Anti-crosstalk
- Gold contacts
- Vibration resistant
- Flange mounting
- Wide temperature
Applications
- Surveillance pan-tilt
- Rotary worktable
- Robotic joint
- Rotating tester
- Camera rotary unit
Optional
- Wire spec
- Channel layout
- IP rating
- Cable length
- Custom terminals
Specification
|
ECN000-06P2-04S-01EG-A
|
Specification
|
|
Protection(IP Grade)
|
IP51
|
|
Working Humidity
|
60%RH
|
|
Working Temperature
|
-50℃~+60℃
|
|
Lead Wire Size
|
AWG17#/24# Wire Teflon UL, CAT6
|
|
Rating Voltage
|
0~220VAC/VDC
|
|
Circuits & Current
|
6 Circuits * 10A, 4 Circuits * 2A(Signal), 1 Group * 1000M Ethernet
|
|
Dielectric Strength
|
≥1000VAC@50Hz(Power), 300VAC@50Hz(Signal)
|
|
Insulation Resistance
|
500MΩ@500VDC(Power), 100M@300VDC(Signal)
|
|
Electrical Noise
|
Max 30mΩ
|
|
Lead Wire Length
|
Rotor: 500mm, Stator:500mm
|
|
Working Speed
|
0~100rpm
|
|
Rotation Way
|
Stator side flange installation
|
|
Contact Material
|
Precious Metal/Gold to gold
|
|
Housing Material
|
Aluminum Alloy
|
Outline drawing
