Ethernet Slip Ring with Hard Anodized Housing for Long-Run Stability

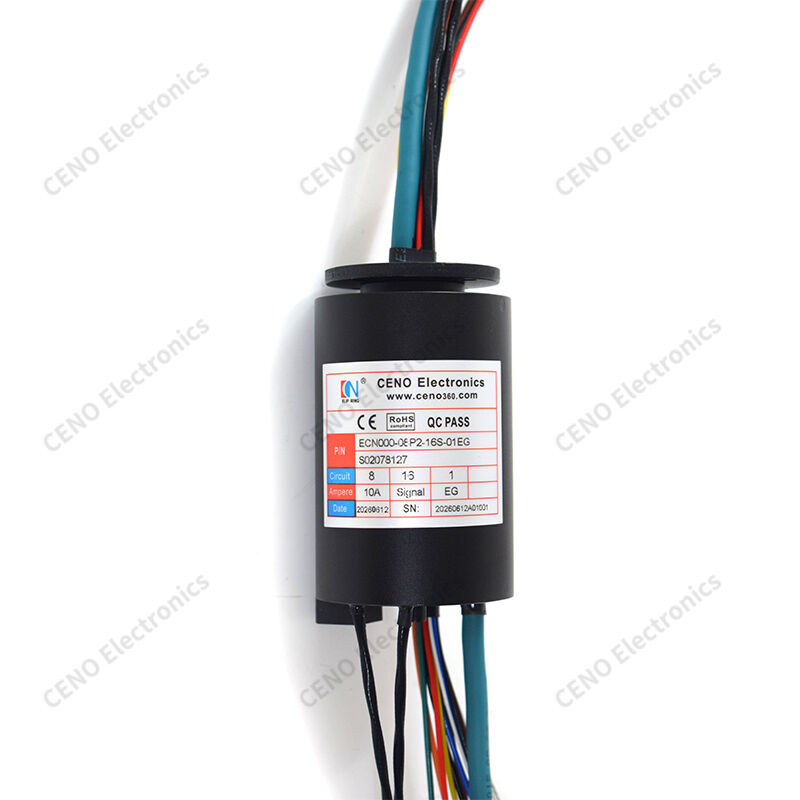

ECN000-08P2-16S-01EG is CENO ethernet slip ring enables simultaneous power, signal and Ethernet transfer while rotating 360° without angular limit. Internal channel partitioning keeps data integrity intact under continuous cyclic movement. Hard anodized aluminum casing delivers reliable mechanical stability for long-run field deployment. Each unit undergoes live rotation validation prior to dispatch. Complying with CE and RoHS norms, it supports volume supply and tailored tweaks for machinery constructors, built for rotary equipment needing combined power and network data routing.
Features
- Data integrity
- Partitioned channels
- Hard anodized
- Flange mounting
- Long-run stable
Applications
- Pan-tilt system
- Rotary workstation
- Robotic actuator
- Rotating test rig
- Vision rotary mount
Optional
- Lead colours
- Derating setup
- Shaft protection
- Bend relief
- Pin assignment
Specification
|
ECN000-08P2-16S-01EG
|
Specification
|
|
Protection Rating
|
IP51
|
|
Operating Humidity
|
Below 60% RH
|
|
Operating Temperature
|
-20°C to +60°C
|
|
Wire Specifications
|
AWG17#/24# tinned PTFE UL, two-core twisted pair shielded cable, CAT
|
|
Operating Voltage
|
0~24VAC/VDC
|
|
Circuit Count/Current
|
8 circuits × 10A; 12 circuits × signal; 2 groups × RS485; 1 group × Gigabit Ethernet
|
|
Dielectric Strength
|
≥300VAC@50Hz between two circuits
|
|
Insulation Resistance
|
100MΩ@300VDC
|
|
Contact Resistance Fluctuation
|
≤30mΩ (operating at 50rpm)
|
|
Lead Length
|
Rotor: 600mm; Stator: 600mm
|
|
Operating Speed
|
0~300rpm
|
|
Mounting Method
|
Rotor end driven by flat position, stator end fixed by flange
|
|
Contact Material
|
Precious metal/gold-to-gold
|
|
Housing Material
|
Aluminum alloy, sandblasted and black anodized
|
|
Service Life
|
10 million revolutions
|
Outline drawing
