| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-02P3-04P2-05P-33S-01F |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons/As request |
| Delivery Time: | 1 weeks |
| Payment Terms: | T/T,Paypal, Western Union, L/C |
| Supply Ability: | 1000pcs per month |
| Working Speed: | 0~300rpm | Circuit: | 4*10A,2*15A,2*2A,3*7A, 33*signal，1*Video Signal，1*Fiber |
|---|---|---|---|
| Fiber Type: | SM(9/125um) | Rating Voltage: | 380VAC |
| Channel: | 1 | Power: | 23dBm |
| High Light: | rotary joint electrical connector,rotating electrical connector slip ring |
||

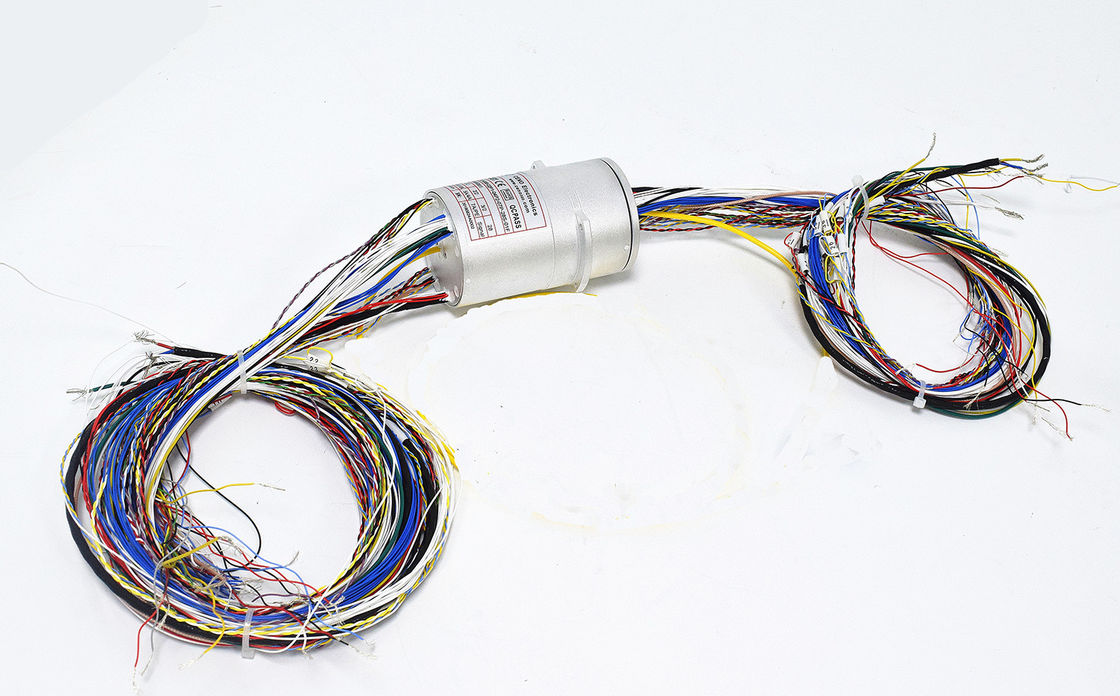

Single Channel Fiber Optic Rotary Joint Used To Any Devices To Transmit Elctricity And Fiber
Fiber Optic slip ring also called Fiber-Electric slip ring,Fiber Optic Rotary Joint. Adopt fiber to trasmit signal, used to any devices to transmit elctricity and Fiber signal when 360° rotating ,such as HD video transmission system, microwave communication, medical equipment, sensor signal measurement, radar and video monitoring system, etc.
Application
Characteristic
Option
Specification
| Parameter | ||||
| Circuit |
4*10A,2*15A,2*2A,3*7A, 33*signal,1*Video signal,1*Fiber |
Protection grade | IP54 | |
| Rating voltage | 380VAC | Working temperature | -20°C ~ + 60°C | |
| Resistance insulation |
500 MΩ@500VDC(power) 100 MΩ@500VDC(signal) |
Rotating speed | 0~300rpm | |
| Dielectric strength |
≥1000V@50hz(power) ≥500V@50hz(signal) |
Contact material | Precious metal | |
| Electric noise | ≤ 70 mΩ(50 rpm) | Housing material | Aluminum alloy oxidation white | |
| Working humidity | ≤60%RH | Installation way | Stator will be fixed axis of equipment by screw | |
| Fiber rotary joint technology data | ||||
| Fiber type | SM(9/125um) | Channel | 1 | |
| Insert lost and changing | ＜2dB(＜1dB) | Power | 23dBm | |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
