IP54 Fiber Optic Rotary Joint Multi - Channels 300rpm Speed 850~1550nm Wavelength


Smallest  Multi-Channels Fiber Optical Rotary Joint

We can supply combination power and data slip rings combined with a fiber optic rotary joint (FORJ) when high data rate transfer is necessary.These custom designed products include the reliable and cost effective metal graphite brush systems combined with the CENO fiber optic rotary joint (FORJ).As well as stand alone media converters ,CENO can build all Optic products into bespoke slip ring solutions incorporating connections to suit each individual requirement.


Features

• Transfers power, as well as analog and digital signals
• Compatible with data bus protocols,compact packaging
• Fiber brush technology provides long life and maintenance free operation


Applications

• Radar system
• Medical equipment
• Marine industrial equipment


Optional

• Fiber channel number
• Connector type
• Fiber type
• Fiber length



Specification

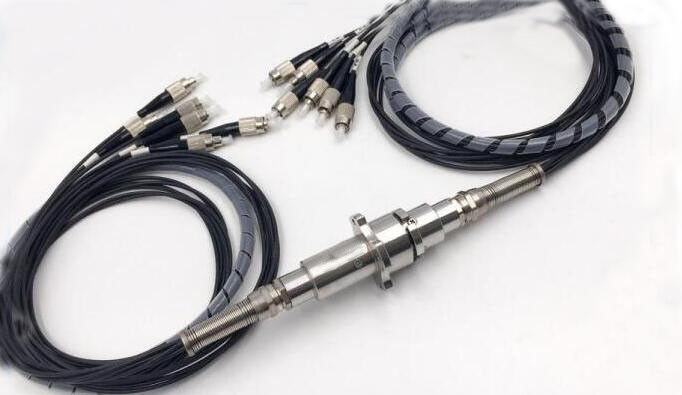

FCN0207G-20		Picture
Fiber type	SM/MM
Fiber channel	2-7
Wavelength range	850~1550nm
Return loss	≥40dB
Insertion loss,max	<3.5dB
Rotation speed,max	300rpm
Operation temperature	-20℃~+60℃
Weight	185g
IP grade	IP60(IP65,IP68 optional)
Power handing peak	≤23dBm



Outline drawing


Q: How does slip ring work?
A: A slip ring is an electrical connection designed to pass the flow of current from a stationary device to a rotating one.This electromechanical device is also known as a rotary electrical connector or rotary electrical joint. Electrical slip rings are free to rotate without limitations, unlike cables which twist and eventually break.In general, conductor rings are mounted on the rotor and terminated with leadwires that run axially through the rotor to one end. Brushes are secured by a brush holder that is mounted to the housing.Electrical slip rings work by holding a sliding contact (brush) against a ring (conductor ring). One part, typically the brush, is stationary while the other, typically the conductor ring, rotates.Electrical components incude the brush, contact ring, and electrical connectors.They are made of precision materials are selected based on requirements such as current size, voltage drop, rotational speed, temperature, resistance variation, bandwidth, and characteristic impedance.

Q: What applications are they used?
A: Typical applications refers revolving automation or control systems such as turntables, index tables, and robots. Wind turbines, semiconductor processing, printing plastic molding, CNC and MRI medical scanners, satellite communications, beverage bottle filling process, and industrial filling machine are also common slip ring applications.
