| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-08P2-30S-03EM-01F |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuits: | 8circuits*10A, 30circuits*1A, 3group*100Mbps | Rating Voltage: | 0~220VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥500VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VD |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~100rpm |
| Working Temperature: | -40°C~+80°C | IP Protection Grade: | IP51 |
| Working Humidity: | 60% | Lead Wire Length: | Rotor : 1000mm Stator : 1000mm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Fiber Type: | Single Mode | Wave Length: | 1310-1550nm |
| Insert Loss: | <2.0dB | Return Loss: | ≥30dB |
| Insert Loss Deviation: | ≤±0.5dB | Contact Type: | SC |
| High Light: | Aluminum Housing Integrated Slip Ring,SM Fiber Optical Rotary Joint,SC Fiber Optical Rotary Joint |
||
Integrated slip ring combined with fiber optic rotary joint and power

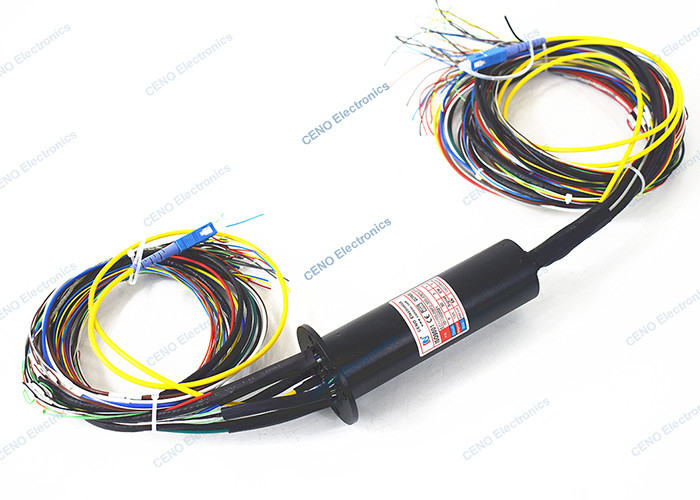

ECN000-08P2-30S-03EM-01F is an integrated slip ring combined power signal with fiber optical rotary joint. There are 8 circuits for 10A electrical power, 30 circuits for 1A signals, 3 group for Megabit Ethernet and 1 channel single mode fiber optical. Most of the Integrated slip ring are customize product for special application, so the fiber type, signal mode, wavelength, operation speed and signal types are optional. Due to integrated slip ring adopt the advantage non-contact technology, it is free from electromagnetic interference and long working life.
Specification
|
ECN000-08P2-30S-03EM-01F |
Specification |
| Current & Circuits | 8circuits*10A, 30circuits*1A, 3group*100Mbps |
| Rating Voltage | 0~220 VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Lead wire length |
Rotor : 1000mm Stator : 1000mm |
| Operating speed | 0~100rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -40°C~+80°C |
| Working humidity | 60% |
| IP protection grade | IP51 |
| Fiber | Specification |
| Fiber type | Single mode |
| Wave length | 1310-1550nm |
| Insert loss | <2.0dB |
| Return loss | ≥30dB |
| Insert loss deviation | ≤±0.5dB |
| Contact type | SC |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
