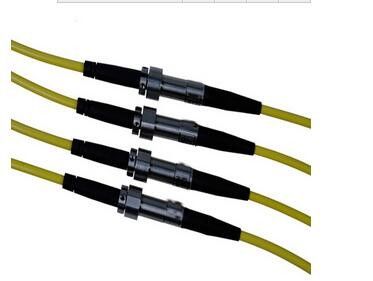

Stainless Steel Fiber Optical Rotary Joint 650 - 1650 Nm Wave Length

Stainless Steel Fiber Optical Rotary Joint With Single Channel

Fiber Optical slip ring also called Fiber-Electric slip ring,Fiber Optic Rotary Joint.
Fiber optic rotary joint provides the best solution for the data transmitting for rotary connections systems.It is suitable for application which needs transmitting large datas or signals from static device to rotary position when continuous or intermittent rotating.
Non-contact technic is the advantage of this series rotary joint.This technic ensures long life span and the high rotation speed becomes more easy in this fiber optic rotary joint series.1 to 22 channels with multi-mode and single mode are optional.More specification are researched to satisfy customers’ demands.Connector type are varied.Low insertion loss assure reliable performance.They are popular to combine electrical slip ring into one design.Fiber optic rotary joint could improve mechanical performance, simplify operation and avoid the data loss during rotating. It is optional together with traditional slip ring to transmit power and high speed data. Relying on CENO's strong R&D ability and experienced engineering team,more and more fiber optic rotary joint model are coming out.

Typical applications

◆ Antenna system
◆ Testing machine
◆ Rotary table
◆ Packing machine

Advantages

◆ Connectors are optional
◆ Non-contact technology provides long life and maintenance free operation
◆ The smallest size worldwide

Outline drawing

Specification

FCN01-6S Specification		Picture
Fiber type	SM/MM
Fiber channel	1
Connector type	FC/PC/LC/ST
Wave length	650-1650nm
Insertion loss	< 2dB
Rotation speed,max	2000rpm
Operation temperature	-40℃～+85℃
Estimated life cycle	200-400 million revolutions
IP grade	IP68
Housing material	Stainless steel
Package style	Pigtails on both ends

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
