|Place of Origin:||China|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Cartons/As request|
|Delivery Time:||1 weeks|
|Payment Terms:||T/T,Paypal, Western Union, L/C|
|Supply Ability:||1000pcs per month|
|Maximum Speed:||200rpm||Fiber Type:||Single Or Multimode|
|Package Style:||Pigtails On Both Ends||IP Rating:||Up To IP65|
|Working Temperature:||-20 To 65C||Housing Material:||Stainless Steel|
slip ring rotary joint electrical connector,
rotating electrical connector slip ring
8 Channels Single Or Multimode Type Fiber Optical Electric Slip Ring Low Insertion Loss
Fiber optic rotary joint provides the best solution for the data transmitting for rotary connections systems.It is suitable for application which needs transmitting large datasor signals from static device to rotary position when continuous or intermittent rotating. Non-contact technic is the advantage of this series rotary joint.This technic ensures long life span and the high rotation speed becomes more easy in this fiber optic rotary joint series.1 to 22 channels with multi-mode and single mode are optional.More specification are researched to satisfy customers’ demands.Connector type are varied.Low insertion loss assure reliable performance.They are popular to combine electrical slip ring into one design.
Fiber Optical Electric Slip Ring also called Fiber Optic Rotary Joint (FORJ). The FORJ is widely used in radar system,motion simulator,marine industrial equipment,naval vessel system.

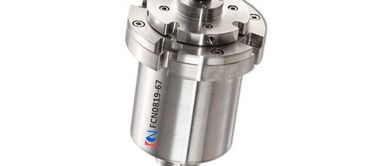

For example ,this model FCN0819-67 ,is capable to accommodate 8-19 channels under the same diameter body.Transfers power, as well as analog and digital signals.
We engineer what you need. Our solutions are customized to meet the exact circuits, ratings, and design parameters required for your application.
◆ Antenna system
◆ Simulator tester
◆ Robot arm
◆ Marine Winch
◆This model is capable to accommodate 8-19 channels under the same diameter body.
◆ Transfers power, as well as analog and digital signals
◆ Compatible with data bus protocols
◆ Fiber brush technology provides long life and maintenance free operation
◆ Compact packaging
|Wave length range||1270-1610nm for SM;850 and 1310nm for MM|
|Insertion loss||< 5dB|
|Estimated life cycle||100 million revolutions|
|Housing material||Stainless steel|
|Package style||Pigtails on both ends|
Q: How does slip ring work?
A: A slip ring is an electrical connection designed to pass the flow of current from a stationary device to a rotating one.This electromechanical device is also known as a rotary electrical connector or rotary electrical joint. Electrical slip rings are free to rotate without limitations, unlike cables which twist and eventually break.In general, conductor rings are mounted on the rotor and terminated with leadwires that run axially through the rotor to one end. Brushes are secured by a brush holder that is mounted to the housing.Electrical slip rings work by holding a sliding contact (brush) against a ring (conductor ring). One part, typically the brush, is stationary while the other, typically the conductor ring, rotates.Electrical components incude the brush, contact ring, and electrical connectors.They are made of precision materials are selected based on requirements such as current size, voltage drop, rotational speed, temperature, resistance variation, bandwidth, and characteristic impedance.
Q: What applications are they used?
A: Typical applications refers revolving automation or control systems such as turntables, index tables, and robots. Wind turbines, semiconductor processing, printing plastic molding, CNC and MRI medical scanners, satellite communications, beverage bottle filling process, and industrial filling machine are also common slip ring applications.
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Why choose CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.
Service CENO provides
Solution offerring for 360° rotation system.
Mass and customized production.
24 hours,7days consultant service.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
Contact Person: Liu
