| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,UL,ISO9001 |
| Model Number: | ECN000-13P-24S-01F |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/Crate |
| Delivery Time: | Off the shelf |
| Payment Terms: | T/T,Paypal,Western Union |
| Supply Ability: | 5000pcs month |
| Current: | 14*10A,3*5A,2*2A,38*signal， 4*video Signal，1*fiber | Rating Voltage: | 380VAC |
|---|---|---|---|
| Working Speed: | 0~300rpm | Fiber Type: | SM(9/125um) |
| Channel: | 1 | Working Temperature: | -40°C ~ + 80°C |
| High Light: | slip ring rotary joint electrical connector,rotating electrical connector slip ring |
||

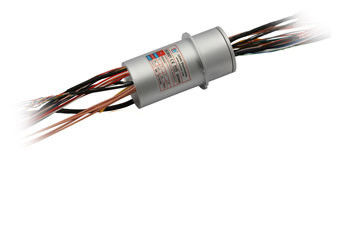

Video Signal Fiber Slip Ring Manufacturer And Supplier At Good Quality Good Rate
Fiber optic rotary joint as the media for data transmission, the fiber connector is designed perfectly for transmitting a large capacity of data and signal from stationary to rotating parts
CENO is a top level fiber optic slip ring manufacturer and supplier,we always provide our customers
with reliable and high quality fiber optic slip ring. If you are looking for military standard or quality
guaranteed products, please feel free to contact us.
Options
Features
Applications
Specification
| Parameter | |||||
| Circuit |
14*10A,3*5A,2*2A,38*signal, 4*video signal,1*fiber |
Protection grade | IP54 | ||
| Rating voltage | 380VAC | Working temperature | -40°C ~ + 80°C | ||
| Resistance insulation |
500 MΩ@300VDC(power) 100 MΩ@300VDC(signal) |
Rotating speed | 0~300rpm | ||
| Dielectric strength |
≥500V@50hz(power) ≥300V@50hz(signal) |
Contact material | Gold to gold | ||
| Electric noise | ≤ 70 mΩ(50 rpm) | Housing material | Aluminum alloy oxidation white | ||
| Working humidity | ≤60%RH | Installation way | Stator will be fixed axis of equipment by screw | ||
| Fiber rotary joint technology data | |||||
| Fiber type | SM(9/125um) | Channel number | 1 | ||
| Insert lost and changing | ＜2dB(＜1dB) | Power | 23dBm | ||
Outline Drawing
Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.
Q: How do we mount the hollow shaft slip ring on our machinery?
Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.
Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Why choose CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.
Honor
ISO9001,CE,RoHS,UL,Explosion-proof
Service CENO provides
Solution offerring for 360° rotation system.
Mass and customized production.
24 hours,7days consultant service.
Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
