| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,UL,ISO9001 |
| Model Number: | ECN000-02P-02S-04EG-01F |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/Crate |
| Delivery Time: | Off the shelf |
| Payment Terms: | T/T,Paypal,Western Union |
| Supply Ability: | 5000pcs month |
| Current: | 2*30A,2*signal，4*Gbe，1*fiber | Rating Voltage: | 380VAC |
|---|---|---|---|
| Working Speed: | 0~300rpm | Working Temperature: | -20°C ~ + 60°C |
| High Light: | slip ring rotary joint electrical connector,rotary joint electrical connector |
||

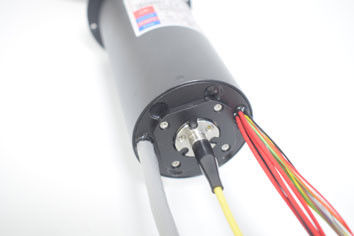

Four Gigabit And One Fiber Signal Of Fiber Optic Rotary Joint
CENO is a top level fiber optic slip ring manufacturer and supplier,we always provide our customers
with reliable and high quality fiber optic slip ring. If you are looking for military standard or quality
guaranteed products, please feel free to contact us.
Fiber conductive slip ring specially suitable for some applications which requires to keep continous or intermittent rotating and transmit mass data from static side to rotation side,which can improve mechanical performance, simplify system operation and avoiding damages to fiber when rotating. Can be combined with the traditional electric slip ring to transmit power and high-speed data.
Welcome to visit us via WWW.360.com for more info.
Options
Features
Applications
Specification
| Parameter | ||||
| Circuit | 2*30A,2*signal,4*Gbe,1*fiber | Protection grade | IP54 | |
| Rating voltage | 380VAC | Working temperature | -20°C ~ + 60°C | |
| Resistance insulation |
≥500 MΩ@500VDC(power) ≥100 MΩ@500VDC(signal) |
Rotating speed | 0~300rpm | |
| Dielectric strength |
≥1000V@50hz(power) ≥500V@50hz(signal) |
Contact material | Precious metal | |
| Electric noise | ≤ 70 mΩ(50 rpm) | Housing material | Aluminum alloy oxidation black | |
| Working humidity | ≤60%RH | Installation way | Stator will be fixed axis of equipment by screw | |
| Fiber rotary joint technology data | ||||
| Fiber type | SM(9/125um) | Channel number | 1 | |
| Insert lost and changing | ＜2dB(＜1dB) | Power | 23dBm | |
Outline Drawing
Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.
Q: How do we mount the hollow shaft slip ring on our machinery?
Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.
Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Why choose CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.
Honor
ISO9001,CE,RoHS,UL,Explosion-proof
Service CENO provides
Solution offerring for 360° rotation system.
Mass and customized production.
24 hours,7days consultant service.
Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
