| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001 |
| Model Number: | ECN000-06P-26S-01EG-01F |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal,Western Union |
| Supply Ability: | 500pcs per month |
| Fiber Channel: | 1 | Fiber Type: | SM |
|---|---|---|---|
| Current: | 6*40A,1*PE,2*RS422,1*RS232,5*3A,4*signal,1*Gigabit Ethernet,1*fiber Optical | Rating Voltage: | 0~240VAC/VDC |
| Operating Speed: | 0-20 Rpm | Contact Material: | Gold To Gold |
| Insertion Loss,max: | 1.5dB | Return Loss,min: | 30dB |
| High Light: | slip ring rotary joint electrical connector,rotary joint electrical connector |
||

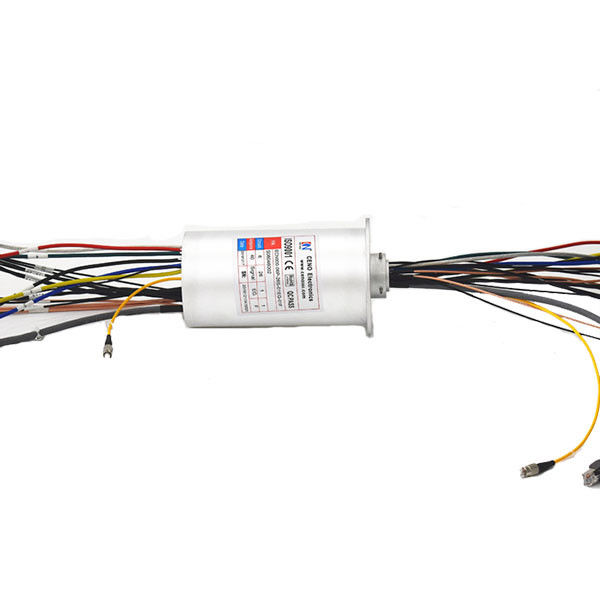

Hybrid Rotary Joint Combined Power Fiber Optical Gigabit
This is hybrid rotary joint, it consists of power part,signal part ,Gigabit Ethernet signal and fiber optical.obviously ,one fiber optical single mode channel with low insertion loss but high return loss. one channel Gigabit Ethernet signal combine power channels.,stable transmission,no package loss, no cross talk,low loss,reliable performance. for the shape structure,we can see housing material is aluminum alloy with solid shaft structure.
Specification
| ECN000-06P-26S-01EG-01F | |
| Current | 6*40A,1*PE,2*RS422,1*RS232,5*3A,4*signal,
1*Gigabit Ethernet,1*fiber optical |
| Voltage | 0~240VAC/VDC |
| Dielectric strength |
≥1000V@50Hz(power) ≥300V@50Hz (signal) |
| Insulation resistance |
500MΩ@500VDC(power) 100MΩ@300VDC(signal) |
| Operating speed | 0-20 rpm |
| Contact material | gold to gold |
| Fiber type | SM |
| Connector | FC/FC |
| Insertion Loss,max | 1.5dB |
| Return Loss,min | 30dB |
Features
Applications
Optional
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
