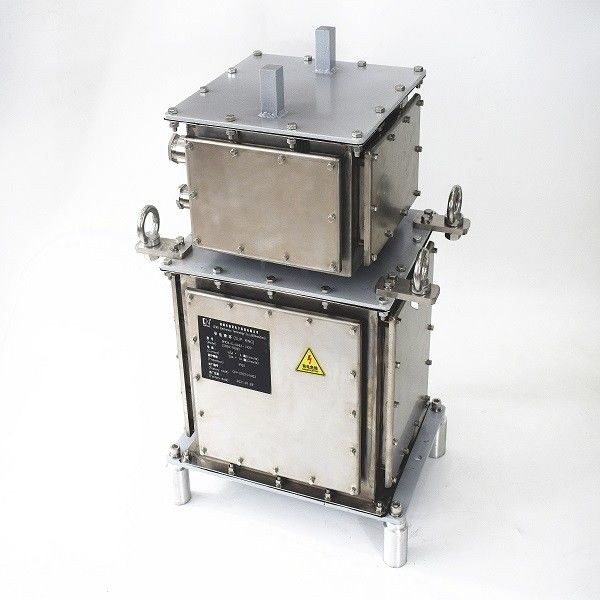

Waterproof Grade IP65 Crane Slip Ring With Copper Graphite Contacts

Waterproof Grade IP65 Crane Slip Ring With Copper Graphite Contacts

  • Waterproof Grade IP65 Crane Slip Ring With Copper Graphite Contacts
  • Waterproof Grade IP65 Crane Slip Ring With Copper Graphite Contacts
Waterproof Grade IP65 Crane Slip Ring With Copper Graphite Contacts
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: BHCN-C-0463-1420
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Crate/As request
Delivery Time: 2 weeks
Payment Terms: L/C, T/T,Paypal,Western Union
Contact Now
Detailed Product Description
Current: 4*63A,14*20A Waterproof Grade: IP65
Voltage 1: 690VAC Voltage 2: 0~380VAC/VDC
Contact Material 1: Copper Graphite Contact Material 2: Precious Metal
Housing Material: Stainless Steel Application: Offshore Crane
High Light:

IP65 Crane Slip Ring

,

690VAC Offshore crane Slip Ring

,

690VAC Through Hole Slip Ring



Waterproof Grade IP65 Crane Slip Ring With Copper Graphite Contacts



Crane slip ring with carbon brush ,waterproof grade IP65 with copper graphite contacts,widely be used in ship machinery.





The unobstructed bore through the center provides routing space for hydraulics, pneumatic or for a concentric shaft mount. Our through-bore slip rings feature our fiber brush technology which offers several advantages over conventional slip ring technology including multiple points of contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.BHCN-C-0463-1420 this type carbon brush slip ring have 4 rings of 63A & 14 rings of 20A,with waterproof grade IP65 .Contact materials for 63A is copper graphite but precious metal for 20A.The housing material is stainless steel with maintenance free . It widely be used in ship machinery, engineering machinery, port machinery, offshore crane, cable reel, propeller,as well as drilling platform.







Specification



BHCN-C-0463-1420 Specification
Circuits & Current 4*63A,14*20A
Voltage 690VAC/ 0~380VAC/VDC
Dielectric strength

≥1500V@50Hz

≥1000V@50Hz

Insulation resistance

≥500MΩ@500VDC

≥300MΩ@300VDC

Operating speed 0-5 rpm
Contact material Copper graphite / Precious metal
Housing material Stainless steel
IP protection grade IP65
Maintenance method (20A) Maintenance-free
Maintenance method (63A) Scheduled maintenance



Features

  • Operating speed 0~5 rpm
  • Maintenance-free
  • Carbon brush structure
  • Working underwater 1000M









Applications

  • Marine applications
  • Offshore crane
  • Cable reels
  • Ship machinery
  • Industry equipment







Optional

  • Maintenance method
  • Current & ring numbers
  • Various signal
  • IP protection grade





Outline Drawing







Waterproof Grade IP65 Crane Slip Ring With Copper Graphite Contacts 0Waterproof Grade IP65 Crane Slip Ring With Copper Graphite Contacts 1
