Signal Integrate bidirectional 160 Rpm Fiber Optical Rotary Joint For Military
  • Signal Integrate bidirectional 160 Rpm Fiber Optical Rotary Joint For Military
  • Signal Integrate bidirectional 160 Rpm Fiber Optical Rotary Joint For Military
  • Signal Integrate bidirectional 160 Rpm Fiber Optical Rotary Joint For Military

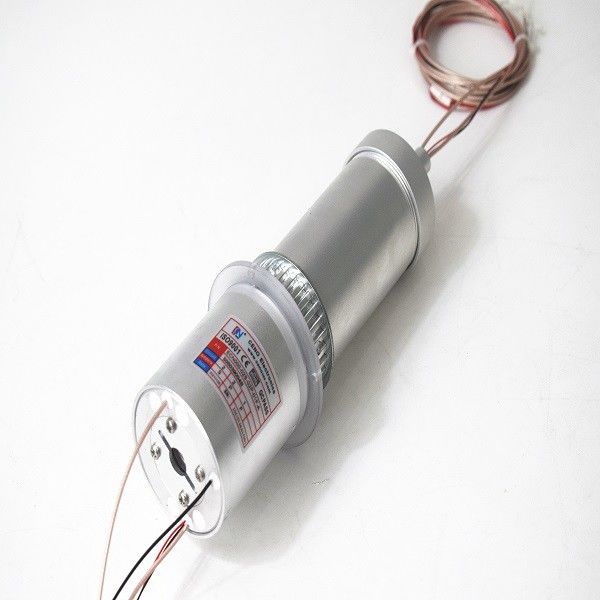

Signal Integrate bidirectional 160 Rpm Fiber Optical Rotary Joint For Military

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN000-02S-02P-01F-A
Product Details
Circuits:
1*RG178,1*Fiber Optic,1*signal,2*2A
Protection Grade:
IP54
Working Speed:
0-160 Rpm
Contact Material:
Precious Metal
Fiber Channels:
1 ChannelS
Housing Material:
Aluminium Alloy Sandblasted Black Oxide
Working Temperature:
-20 ~ +60 °C
High Light:

160 rpm Fiber Optical Rotary Joint

,

bidirectional Optical Rotary Joint

,

Gold To Gold Military Rotary Joint

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description

Signal Integrate 160 Rpm Fiber Optical Rotary Joint For Military



Power/Signal integrate Fiber Optic Rotary Joint,no electromagnetic leakage good sealing,used for military applications



Reliable production processes through reliable data transmission.ECN000-01P2-04F is a fiber optical rotary joints are immune against electromagnetic interference. Thanks to its minimal dimensions, the fiber optical rotary joint can be used in many different installation situations. Compact, ultra-fast and highly precise.The contact less, bidirectional high-speed data transmission by rotary unions offers many benefits: an extremely robust design.Fiber optical rotary joint with ultimate efficiency rotary units are manufactured using a newly developed adjustment process of ultimate precision ensuring an innovative as well as reliable positioning of the optical components. This guarantees the outstanding optical efficiency of rotary.



Specifications



ECN000-02S-02P-01F-A Specification
Circuits & Current 1*RG178,1*Fiber optic,1*signal,2*2A
Voltage 0~240VAC/VDC
Dielectric strength ≥500V@50Hz
Insulation resistance ≥100MΩ@100VDC
Operating speed 0-160 rpm
Contact material Precious metal
Housing material Aluminium housing
IP protection grade IP54
Fiber channel 1
Working temperature -20 ~ +60 °C





Features

  • Power ,signal +fiber optic
  • 1 channel RG178
  • Working speed 0~160 rpm
  • Aluminium housing



Applications

  • Marine applications
  • Radar antennas
  • Military applications
  • Aeronautical applications
  • For harsh environments



Optional

  • Fiber optic channels
  • Current & ring numbers
  • Integrate various signal
  • IP protection grade



Outline drawing



Signal Integrate bidirectional 160 Rpm Fiber Optical Rotary Joint For Military 0
