1 Channel Pneumatic Rotary Union Joint With 20mm Inner Bore

1 Channel Pneumatic Rotary Union Joint With 20mm Inner Bore

Pneumatic Rotary Union Joint with 20mm inner bore for 10Bar gas transmission,working speed 50rpm,used for food processing,plastic fiber manufacturing and chemical pharmacy.

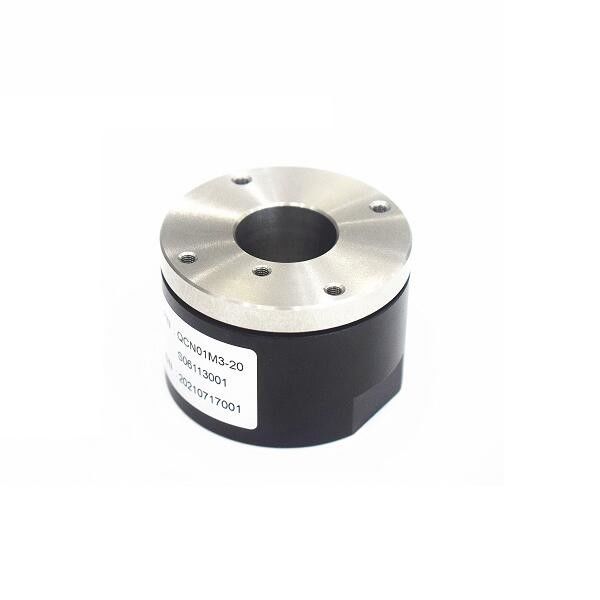

The QCN series rotary unions are designed for air,gas and vacuum use and are ideal for a number of automation and robotic applications.With light weight,compact rotary unions feature an all aluminum alloy construction and two independent flow passages capable of transferring different types of media at the sametime.Stainless steel models are available to prevent corrosion for use with applications requiring water or corrosive media transfer.QCN01M3-20 with 1 channel for gas transmission,the pressure is 10Bar,inner diameter is 20mm.Any special solutions also can be customized.The number of electric circuits can reach hundreds, and the gas and liquid channels can reach 16 channels.External dimension and installation method can be customized.

Features

• Gas transmission
• Pressure 10Bar
• Inner bore size 20mm
• Hydraulic & pneumatic

Applications

• Chemical pharmacy

• Food processing

• Medical equipment

• Plastic fiber manufacturing

• Machinery manufacturing

Optional

• Cirtuit channel
• Pressure size
• Signal type
• Connector specification
• Current rating

Specification

Outline Drawing

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
