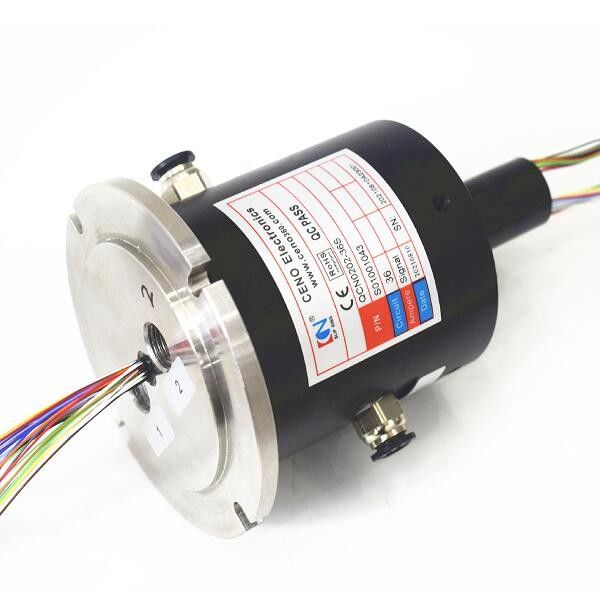

Food Industry Signal Integrated Pneumatic Rotary Joint 2 Channel Gold Contacts

Food Industry Signal Integrated Pneumatic Rotary Joint 2 Channel Gold Contacts

  • Food Industry Signal Integrated Pneumatic Rotary Joint 2 Channel Gold Contacts
  • Food Industry Signal Integrated Pneumatic Rotary Joint 2 Channel Gold Contacts
Food Industry Signal Integrated Pneumatic Rotary Joint 2 Channel Gold Contacts
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: ISO9001,CE,RoHS
Model Number: QCN0202-36S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 2 weeks
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Air Channel Number: 2 Channels Gas Pressure: -100KPa~ 0.5MPa
Housing Material: Aluminum Alloy + Stainless Steel+engineer Plastic Other Circuits: 2 Channel For Air
Working Speed: 0~60rpm Contact Material: Gold To Gold
Voltage: 0~24VDC Signal: 36 Rings
High Light:

Signal Integrated Pneumatic Rotary Joint

,

2 Channel Pneumatic Rotary Joint

,

Signal Integrated pneumatic rotary union

Food Industry Signal Integrated Pneumatic Rotary Joint 2 Channel Gold Contacts



Signal integrated pneumatic rotary joint with 2 channels G1/4'',pressure -100KPa~ 0.5MPa,gold contacts,used for food industryused for injection equipment,plastic fiber manufacturing and chemical pharmacy.







QCN series rotary unions are compact,light weight and corrosion resistant featuring a stainless steel shaft and hardcoat anodized aluminum housing.The shaft,housing and seal materials and design makes this an excellent solution when transferring water,coolant, hydraulic oil or air/gas from a stationary source to a rotating component.QCN0202-36S including 2 channels for air,both channel G1/4’’,pressure -100KPa~ 0.5MPa,also integrated 36 rings of signal.The working speed 0~60 rpm with flange installation way.The contact materials is gold to gold to make sure the lifetime more longer and performance more stable.QCN series widely used for rotary tables, injection molding equipment,plastics industry and filling applications etc,.







Features

  • Compact structure
  • Gold to gold contacts
  • 2 channels of air
  • Flange installation







Applications

  • Medical equipment

  • Food processing

  • Offshore equipment

  • Military industry





Optional

  • Cirtuit channel
  • Pressure size
  • Signal type
  • Connector specification
  • Current rating







Specification



QCN0202-36S Specification
Circuits & Current 2 channels*air,36*signal
Voltage 0~24VDC
Dielectric strength ≥500V@50Hz
Insulation resistance ≥100MΩ@100VDC
Operating speed 0-60 rpm
Gas channel 2 channels, G1/4″
Pressure -100KPa~ 0.5MPa
Contact material Gold to gold
Housing material Aluminum & stainless & plastic
IP grade IP51







Outline Drawing



Food Industry Signal Integrated Pneumatic Rotary Joint 2 Channel Gold Contacts 0

























Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.





FAQ



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Food Industry Signal Integrated Pneumatic Rotary Joint 2 Channel Gold Contacts 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof
