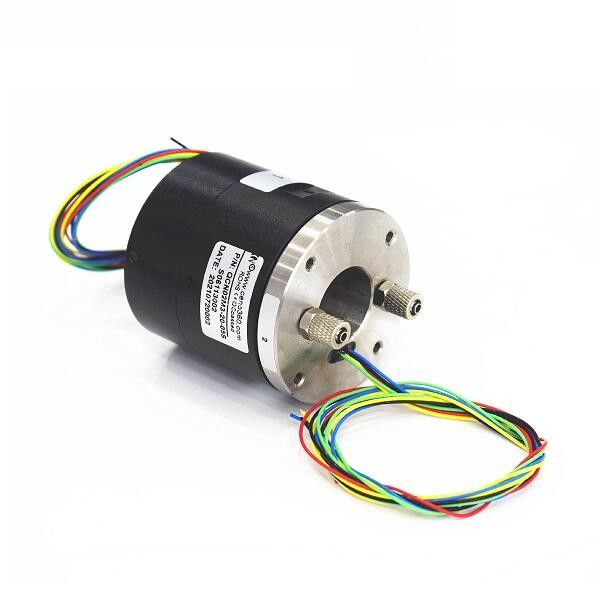

50rpm Air Rotary Union Pneumatic Rotary Joint With 2 Channels

Pneumatic rotary joint with 2 channels for gas,10Bar pressure,working speed 50rpm,ID is 20mm,used for injection equipment,food processing,plastic fiber manufacturing and chemical pharmacy.

QCN02M3-20-05S is a pneumatic rotary joint with 2 channels for gas,it can transmit compressed air, vacuum,pressure up to 10Bar,compact structure,light weight,corrosion resistant,stainless steel shaft and aluminum shell.This kind of rotary joints are equipped with male thread shaft and female thread housing for easy installation.The shaft,housing and seal materials and design makes this an excellent solution when transferring water,coolant,hydraulic oil or air,gas from a stationary source to a rotating component. If it’s need to combine fluid with electrical power,signal or data transfer,CENO QCN series rotary unions are designed to integrate directly with our standard through bore electrical slip rings.External dimension and installation method can be customized.

Features

• 2 channels for gas transmission
• Pressure 10Bar
• Inner bore size 20mm
• Compact,light design

Applications

• Food processing

• Medical equipment

• Plastic fiber manufacturing

• Injection equipment

• Filling application

Optional

• Circuit number
• Pressure size
• Signal type
• Connector specification
• Current rating

Specification

Outline Drawing

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
