| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-02P-02P1-01F |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuits: | 2 Circuits*25A; 2Circuits*5A | Protection Grade: | IP54 |
|---|---|---|---|
| Working Speed: | 0-250 Rpm | Contact Material: | Precious Metal |
| Housing Material: | Natural Color Of Aluminum Alloy Anodized | Working Temperature: | -55~+85℃ |
| Fiber Type: | 9/125um | Wave Length: | 1310/1550 Nm |
| Connector Type: | FC/PC | ||
| High Light: | FC PC Fiber Optical Rotary Joint,IP54 Fiber Optical Rotary Joint,Metal Contact Fiber Optical Rotary Joint |
||

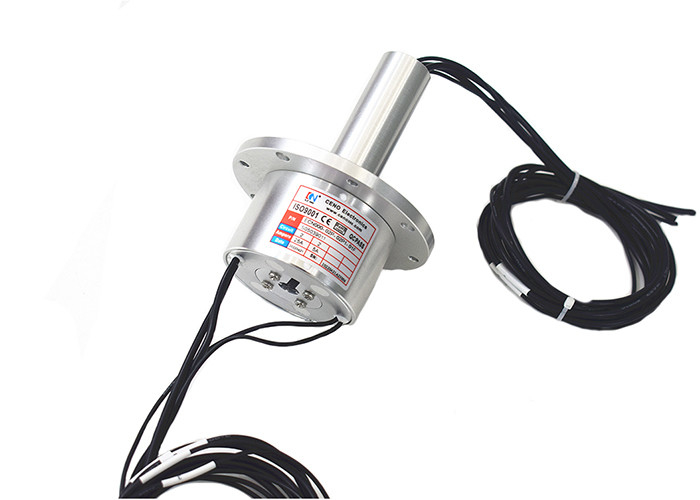

Low temperature -55~+85℃ aerospace high altitude Fiber Optical Rotary Joint
ECN000-02P-02P1-01F is one of CENO’s Fiber Optic Rotary Joints, and is called Fiber-electric slip ring too. It can be used in any electric mechanical system that requires unrestrained, continuous rotation while transferring power, data or Fiber signal from a stationary to a rotating structure when 360° rotating, such as Microwave communication, HD video transmission system, sensor signal measurement, medical equipment, radar and video monitoring system etc. CENO will continue to develop our abilities and focus on creating new technology that drives change, meets the needs of our partners and challenges our team.
Specification
| ECN000-02P-02P1-01F | |||
| Power | Specification | Fiber channel | 1 channel |
| Current & Circuits | 2 Circuits*25A; 2Circuits*5A | Fiber type | 9/125um |
| Rating Voltage | 0~800 VDC | Wave length | 1310~1550nm |
| Dielectric strength | ≥ 3000VAC@50Hz (Between tow circuits) | Insert loss | ≤1.0dB |
| Insulation resistance | ≥800MΩ@1000VDC | Insert loss WOW | <0.25dB |
| Contact resistance fluctuation | Max 20mΩ (50rpm) | Return loss | ≥40dB |
| Lead wire |
AWG16# silicon high voltage wire (UL3239) AWG20# silicon wire(UL3239) |
Maximum Optical power | 23dB |
| Working speed | 0-250 rpm | Lead wire length | 1000mm at each end |
| Operating temperature | -55~+85℃ | Encapsulated type | 3mm tail fiber sheath at both ends |
| Working Humidity | 60%RH | Interface type | FC/PC |
| Contact material | Precious metal | ||
| IP protection grade | IP54 | ||
| Housing material | Natural color of aluminum alloy anodized | ||
| Install way |
Stator end fixed with flange, Rotor end flat position drive. |
Features
• Stable data transmission, aerospace
• High / Low temperature -55~+85℃
• Working normally at high altitude of 1,0000 meters
Applications
• High definition video surveillance
• Serial communication
• Industrial automatic control
• Sensor signal measurement
Optional
• Circuit number & Current rating
• Wave length & Fiber type
• Working speed & IP Grade
• Interface type
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
