| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-02P2-08S-04F |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuits: | 2 * 10A, 2 * RS422 Signal | Rating Voltage: | 0~220 VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥500VAC@50Hz | Isolation Resistance: | ≥500MQ@500VDC |
| Electrical Noise: | ≤30mΩ (50rpm) | Operating Speed: | 0~200rpm |
| Working Temperature: | -30°C~+65°C | IP Protection Grade: | IP51 |
| Working Humidity: | 60% | Lead Wire Size: | AWG17# Tin Coated Teflon 4 Core Twisted Shield Wire |
| Installation Way: | Stator Sde Fixed By Flange Rotor Side Drove By The Screw Bolt | Fiber Type: | SM |
| Channel: | 4 | Wave Length: | 1310/1550nm |
| Insert Loss: | < 3.5dB | Return Loss: | ≥40dB |
| Withstand Power: | ≤ 23 DBm | Cable Length: | Rotor: 300mm, Stator:300mm |
| Contact Type: | LC | ||
| High Light: | Integrated Slip Ring IP51,Compact Integrated Slip Ring |
||

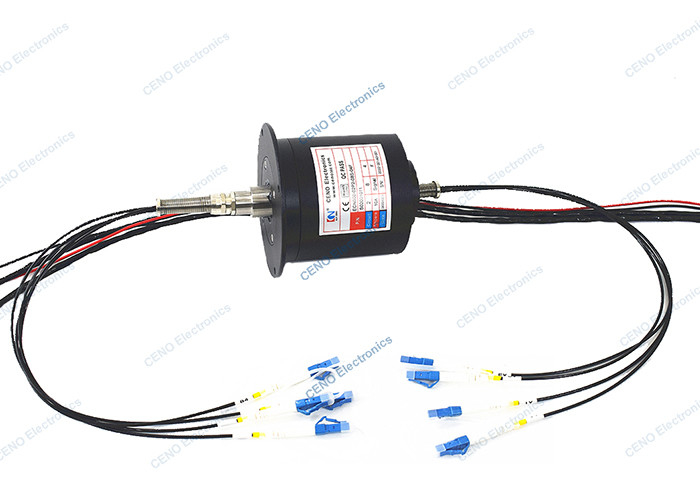

Integrated slip ring combined power signal and fiber optic rotary joint
ECN000-02P2-08S-04F is an integrated slip ring combined 2 circuits for 10A with 2 group for RS422 Signals and 4 channels for fiber optical from CENO electronics. This series of slip ring is a customized non-standards series, designed for specific applications, the circuits, channels Voltage, IP Protection grade, wave length are optional as different application. It has stable performance and a variety of functions, often apply to the photoelectric Pod, medical equipment, Aerospace and electric crane.
Specification
|
ECN000-02P2-08S-04F |
Specification |
| Current & Circuits | 2circuits*10A, 2 group*RS422 Signal |
| Rating Voltage | 0~220 VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | ≥500MQ@500VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Lead wire length |
Rotor : 300mm Stator : 300mm |
| Operating speed | 0~200rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -30°C~+65°C |
| Working humidity | 60% |
| IP protection grade | IP51 |
| Lead wire size |
AWG17# Tin coated Teflon 4 core twisted shield wire |
| Installation way |
Stator sde fixed by flange Rotor side drove by the screw bolt |
| Fiber | |
| Fiber type | SM |
| Channel | 4 |
| Wave length | 1310/1550nm |
| Insert loss | < 3.5dB |
| Return loss | ≥40dB |
| Withstand power | ≤ 23 dBm |
| Cable length | Rotor: 300mm, Stator:300mm |
| Contact type | LC |
Features
Applications
Optional
Outline drawing
