| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-04P4-08S-04F-IP66 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons/As request |
| Delivery Time: | 1 weeks |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Channels: | 4 Channels | Fiber Type: | Single Mode |
|---|---|---|---|
| Wavelength: | 1310~1550nm | Insert Loss: | ≤3.5dB |
| Return Loss: | ≥30dB | Luminous Power, Max: | 23dB |
| Lead Wire Length: | Rotor: 2200mm Stator: 2200mm | Connector: | FC/FC |
| Current & Circuits: | 4circuits*20A; 8*Signal (10A) | Rating Voltage: | 0~380VAC/1A |
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Contact Resistance: | 30mΩ (50rpm) | Contact Material: | Precious Metal |
| Housing Material: | Aluminum Alloy+Stainless Steel316 | Working Temperature: | -20°C~+45°C |
| Working Humidity: | 70%RH | IP Protection Grade: | IP66 |
| Operating Speed: | 0~50rpm | External Diameter: | Ø100mm |
| Installation: | Stator Fix By Flange | ||
| High Light: | 2 channels Fiber Optic Rotary Joint,Precious Metal Fiber Optic Rotary Joint,Integrated Slip Ring With FORJ |
||

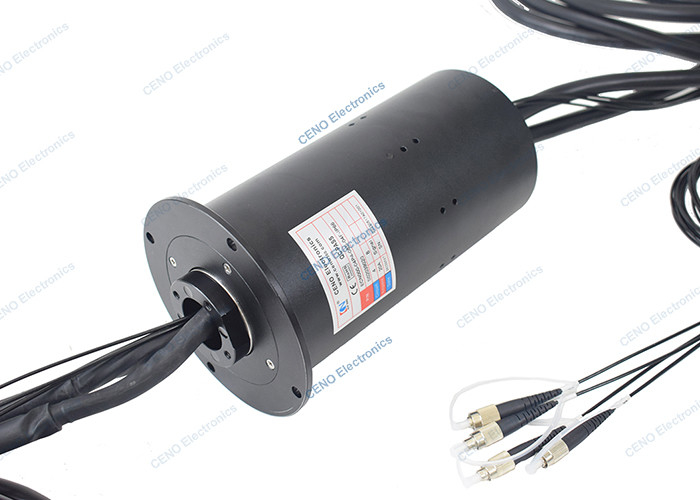

Fiber Optic Rotary Joint Integrated Slip Ring with 4 FORJ for industry
ECN000-04P4-08S-04F-IP66 is CENO’s new designed integrated slip ring which is compatible with 4 channels Fiber Optic Rotary Joint, 4 circuits 20A electrical power and 8 circuits for data signals. Advantage is the integrated slip ring is that use optical fiber to transmit information, no electromagnetic interference, and transmission bandwidth is much larger than the pure electrical connector. CENO have more than 1000 Integrated designs for our global customs in nearly twenty years. For more information about how CENO’s slip ring can suit your specific environment, please contact us.
Features
Combine FORJ & Electric signal
No leakage, no interference
Can be integrated various data
Install easily & transmit stably
Applications
Intelligent automatic
Rotating turret on the vehicle
Radar system
Medical equipment
Optional
Circuit, Voltage, Current
Fiber Channels
Contact / Housing Materials
Working speed
Specification
|
ECN000-04P4-08S-04F-IP66 |
Specification |
|
Current & Circuits |
4circuits*20A; 8*Signal (10A) |
| Rating Voltage |
0~380VAC/1A |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | 30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy+Stainless steel316 |
| Working temperature | -20°C~+45°C |
| Working humidity | 70%RH |
| IP protection grade | IP66 |
| Operating speed | 0~50rpm |
| External diameter | Ø100mm |
| Lead wire length |
Rotor: 2200mm Stator: 2200mm |
| Installation | Stator fix by flange |
| Fiber | |
| Channels | 4 channels * Fiber optical |
| Fiber Type | Single mode |
| Wavelength | 1310~1550nm |
| Insert loss | ≤3.5dB |
| Return loss | ≥30dB |
| Luminous power, max | 23dB |
| Lead wire length | 2000mm each side |
| Connector | FC/FC |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
