| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-13P-24S-01F-LC |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons/As request |
| Delivery Time: | 1 weeks |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Fiber Type: | Single Mode(9/125um) | Wave Length: | 1310-1550nm |
|---|---|---|---|
| Insert Loss: | <2.0dB | Insert Loss Change: | <0.5dB |
| Return Loss: | >45dB | Optical Power: | 23dB |
| Cable Length: | Stator:800±10mm; Rotor:1500±10mm | Connector: | LC/LC |
| FORJ External Dimension: | 3mm | Housing Material: | Aluminum Alloy |
| Current & Circuits: | 7circuits*20A; 4circuits*2A; 2circuits*7A; 24circuits*1A | Rating Voltage: | ≥500VAC@50Hz |
| Isolation Resistance: | ≥200MΩ@500VDC | Electrical Noise: | 10mΩ (50rpm) |
| Torque: | ≤0.25N*m (-40°C) | Contact Material: | Gold To Gold |
| Working Temperature: | -40°C~+80°C; -55°C~+70°C | Working Humidity: | 60 %RH |
| IP Protection Grade: | IP54 | Operating Speed: | 0~100rpm |
| Lead Wire Length: | Rotor : 1500mm Stator : 800mm | External Diameter: | Ø62mm |
| Installation: | Rotor Fixed By Screws; Stator Fixed By Flanges | ||
| High Light: | Fiber Optic Rotary Joint Slip Ring,1550nm Rotary Joint Slip Ring,23 dB Fiber Optic Rotary Joint |
||
Fiber optic rotary joint design electrical slip ring with low temperature application

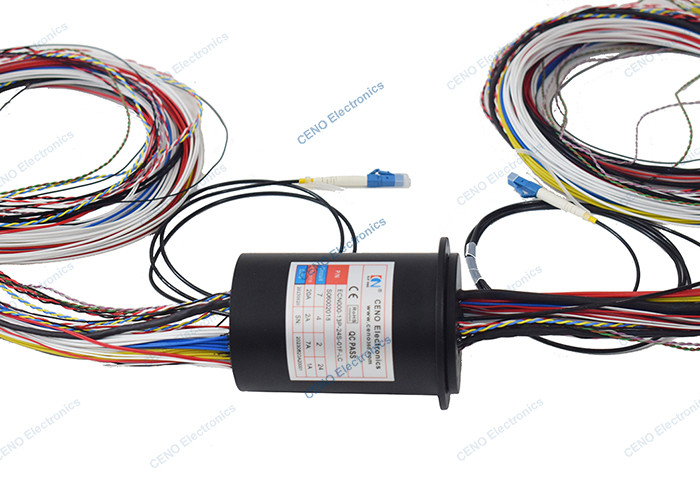

ECN000-13P-24S-01F-LC is an integrated slip ring which combine electrical power, data signals and 1 channel Fiber Optic Rotary Joint. And it can be working stably at the low temperature environment with -55°C to +80°C. Fiber Optic Rotary Joints are to optical signals like what electrical slip rings are to electrical signals, a means to pass signals across rotating interface, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. More information about how CENO integrated slip ring can fit your specific usage please contact us.
Features
Applications
Optional
Specification
|
ECN000-13P-24S-01F-LC |
Specification |
| Current & Circuits |
7circuits*20A; 4circuits*2A; 2circuits*7A; 24circuits*1A |
|
Rating Voltage |
0~380VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz |
| Isolation resistance | ≥200MΩ@500VDC |
| Electrical Noise | 10mΩ (50rpm) |
| Torque | ≤0.25N*m (-40°C) |
| Contact material | Gold to Gold |
| Housing material | Aluminum Alloy |
| Working temperature | -40°C~+80°C; -55°C~+70°C |
| Working humidity | 60 %RH |
| IP protection grade | IP54 |
| Operating speed | 0~100rpm |
| Lead wire length |
AWG17# 22#26# Tin coated Teflon ® UL Twisted wires or shielded wires |
| Lead wire length |
Rotor : 1500mm Stator : 800mm |
| External diameter | Ø62mm |
| Installation | Rotor fixed by screws; Stator fixed by flanges |
| Fiber | |
| Fiber type | Single mode(9/125um) |
| Wave length | 1310-1550nm |
| Insert loss | <2.0dB |
| Insert loss change | <0.5dB |
| Return loss | >45dB |
| Optical power | 23dB |
| Cable length | Stator:800±10mm; Rotor:1500±10mm |
| Connector | LC/LC |
| FORJ External Dimension | 3mm |
| Housing material | Stainless steel |
Outline drawing
Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
