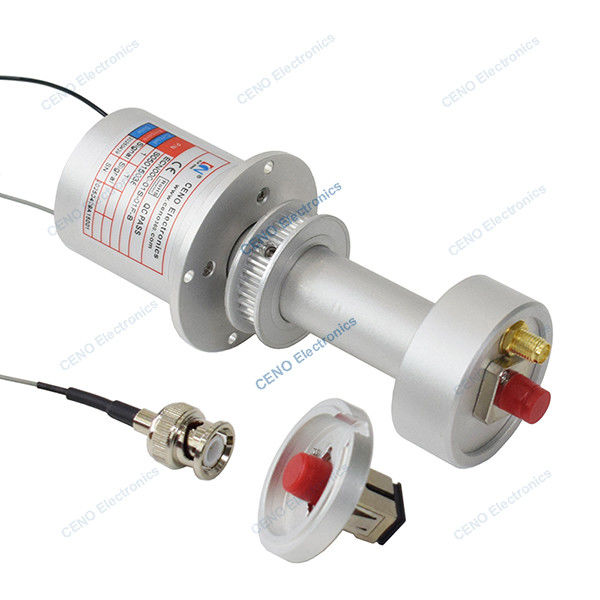

Integrate Coaxial Signal and FORJs Slip Ring with Fiber Optic Rotary Joint
  • Integrate Coaxial Signal and FORJs Slip Ring with Fiber Optic Rotary Joint
  • Integrate Coaxial Signal and FORJs Slip Ring with Fiber Optic Rotary Joint
  • Integrate Coaxial Signal and FORJs Slip Ring with Fiber Optic Rotary Joint
  • Integrate Coaxial Signal and FORJs Slip Ring with Fiber Optic Rotary Joint
Integrate Coaxial Signal and FORJs Slip Ring with Fiber Optic Rotary Joint

Integrate Coaxial Signal and FORJs Slip Ring with Fiber Optic Rotary Joint

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN000-01S-01F-B
Product Details
Fiber Optic:
1 * Fiber Optic
Current & Circuits:
1 * Coaxial Signal
Fiber Type:
Single Mode HI1060 Fiber Optic
Wave Length:
1310nm
Rating Voltage:
0-240 VAC/VDC
Dielectric Strength:
≥500VAC@50Hz
Isolation Resistance:
≥500MΩ@100VDC
Contact Resistance:
≤70mΩ (50rpm)
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy
Working Temperature:
-20°C~+60°C
Working Humidity:
60 %RH
IP Protection Grade:
IP51
Operating Speed:
0~6000rpm
Outer Diameter:
Ø40mm
Lead Wire Size & Length:
As Request
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

Integrate Coaxial Signal and FORJs Slip Ring with Fiber Optic Rotary Joint

ECN000-01S-01F-B is CENO integrate signal + fiber optic rotary joint slip ring with high speed 6000rpm. CENO integrated forjs slip ring combine different electric power, signals, data with forjs together based on customer special request and application. Fiber optic rotary joint including two type mode, single and multi-mode, channels can be customized and up to dozens of channels. CENO integrate forjs slip ring works stably and often equipped on the various optoelectronic pod system.





Features

  • Integrate signal + forjs
  • Suit for low temperature -40°C~+80°C
  • Can be integrated various data
  • Install easy & Free maintenance



Applications

  • Robotics
  • Photoelectric pod
  • Intelligent housing system
  • Radar system
  • Remote control system



Optional

  • Circuit, Voltage, Current
  • Channels Signals and data
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature







Specification

ECN000-01S-01F-B

 Specification
Current & Circuits 1 * Coaxial signal
Rating Voltage 0 ~ 240 VAC/VDC
Dielectric strength ≥500VAC@50Hz
Isolation resistance ≥100MΩ@100VDC
Contact resistance ≦70mΩ(50rpm)
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP51
Outer diameter Ø20mm
Operating speed 0~6000rpm
Contact material Precious Metal
Housing material Aluminum alloy
Lead wire length

As customized
Fiber optic
Channel 1 * fiber optic
Fiber type Single mode HI1060 fiber optic
Wave length 1310nm
Insert loss ≤2.0dB
Insert loss wave ≤0.7dB
Feed back loss ≤23dB
Working speed rpm 0~2000
Pigtail length & encapsulation 0.9mm white jacket; wire length 200mm
Connector type FC/APC Connector







Outline drawing

Integrate Coaxial Signal and FORJs Slip Ring with Fiber Optic Rotary Joint 0









CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.



Integrate Coaxial Signal and FORJs Slip Ring with Fiber Optic Rotary Joint 1
