Hybrid slip ring with one RF coaxial channel
  • Hybrid slip ring with one RF coaxial channel
  • Hybrid slip ring with one RF coaxial channel
  • Hybrid slip ring with one RF coaxial channel
  • Hybrid slip ring with one RF coaxial channel
  • Hybrid slip ring with one RF coaxial channel
  • Hybrid slip ring with one RF coaxial channel
  • Hybrid slip ring with one RF coaxial channel
Hybrid slip ring with one RF coaxial channel

Hybrid slip ring with one RF coaxial channel

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN000-01S-Z
Product Details
Protection Rating:
IP51
Operating Humidity:
Below 60% RH
Operating Temperature:
-20°C ~ +60°C
Operating Voltage:
240 VAC
Number Of Circuits/Current:
1 Channel × High-frequency Signal
Dielectric Strength:
≥500 V @ 50 Hz Between Circuits
Insulation Resistance:
100 MΩ @ 100 VDC
Contact Resistance Fluctuation Value:
≤30 MΩ (at 30 Rps / 15 Rps)
Operating Speed:
0～2000 Rpm
Cable Lengths:
Rotor Side: 300 Mm; Stator Side: 300 Mm
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy, Sandblasted And Black Anodized
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal,Western Union
Supply Ability
1000pcs per month
Product Description

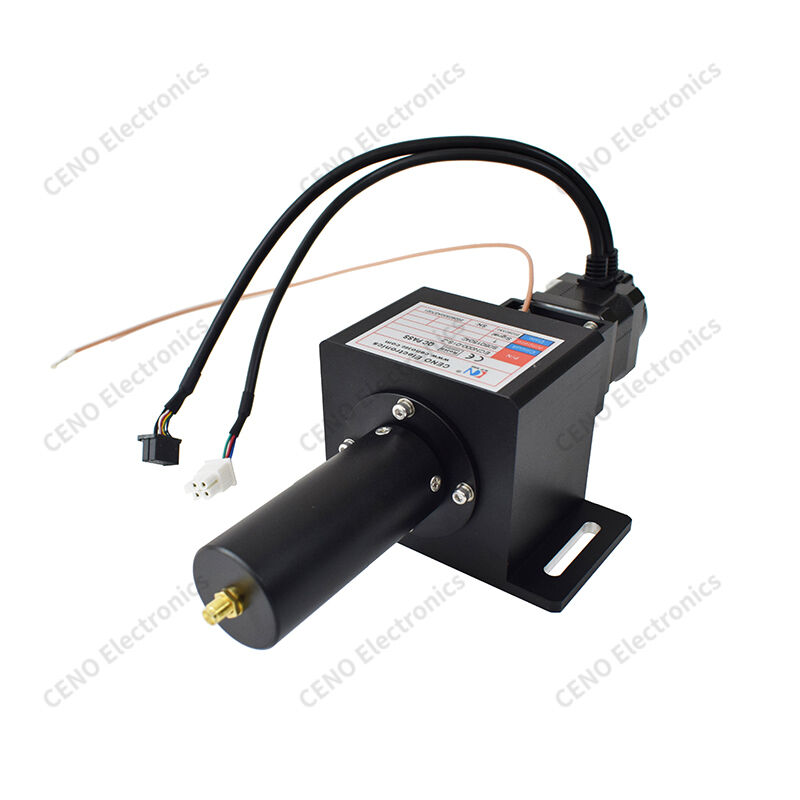

Hybrid slip ring with one RF coaxial channel


ECN000-01S-Z  is CENO  integrated hybrid slip ring combines multi-channel weak current control circuits and one RF coaxial channel, allowing unlimited 360° continuous rotation to transfer low-voltage control signals and high-frequency RF signals simultaneously. It features a corrugated buffer component to offset axial vibration and safeguard internal precision contact assemblies, paired with a slotted adjustable mounting plate for flexible installation.


Features

  • Triple signal integration
  • Vibration buffer
  • Anti-crosstalk wiring
  • Adjustable mount
  • EMI shielding

Applications

  • RF test turntable
  • Optical inspection
  • Opto gimbal
  • NDT equipment
  • Vision rotary platform

Optional

  • Custom fiber port
  • Wiring terminal
  • Rotation speed
  • IP protection
  • Extra signal channels

Specification

ECN000-01S-Z

Specification

Protection Rating

 IP51

Operating Humidity

Below 60% RH

Operating Temperature

-20°C ~ +60°C

Operating Voltage

240 VAC

Number of Circuits/Current

1 channel × high-frequency signal

Dielectric Strength

≥500 V @ 50 Hz between circuits

Insulation Resistance

100 MΩ @ 100 VDC

Contact Resistance Fluctuation Value

≤30 mΩ (at 30 rps / 15 rps)

Operating Speed

0～2000 rpm

Cable Lengths

Rotor side: 300 mm; Stator side: 300 mm

Contact Material

Precious metal

Housing Material

Aluminum alloy,

sandblasted and black anodized


Outline drawing

Hybrid slip ring with one RF coaxial channel 0


CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.


Hybrid slip ring with one RF coaxial channel 1
