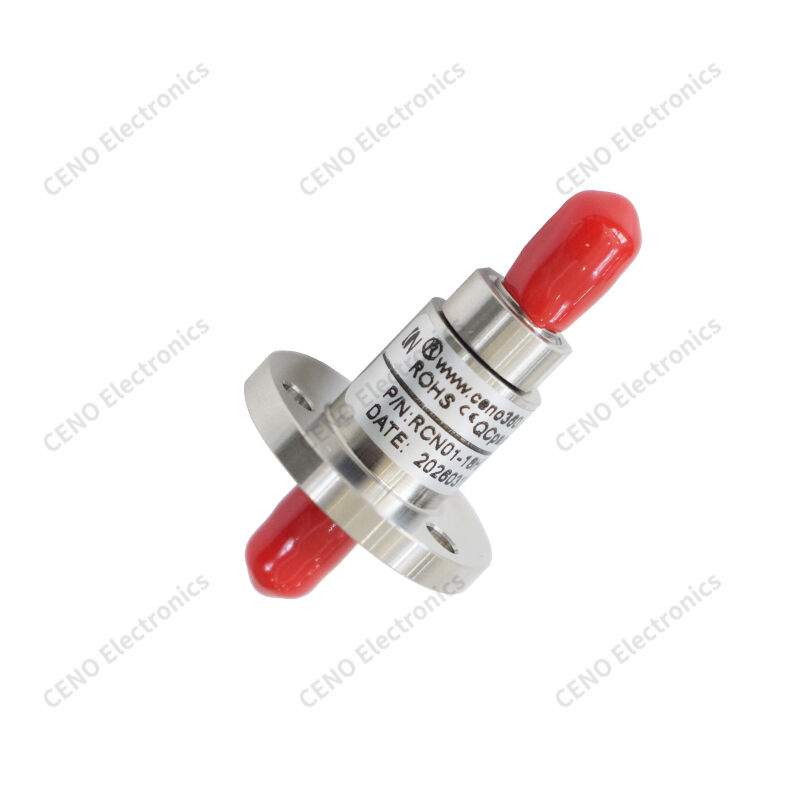

Flange-Mount Single-Channel RF Rotary Joint
  • Flange-Mount Single-Channel RF Rotary Joint
  • Flange-Mount Single-Channel RF Rotary Joint
  • Flange-Mount Single-Channel RF Rotary Joint
  • Flange-Mount Single-Channel RF Rotary Joint
  • Flange-Mount Single-Channel RF Rotary Joint
  • Flange-Mount Single-Channel RF Rotary Joint
  • Flange-Mount Single-Channel RF Rotary Joint
Flange-Mount Single-Channel RF Rotary Joint

Flange-Mount Single-Channel RF Rotary Joint

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number RCN01-18HZ
Product Details
Channel:
1
Interface Type:
SMA-K (50Ω)
Frequency Range:
DC-18GHz
Average Power, Max:
100W@DC~2GHz; 50W@2~8GHz; 25W@8~15GHz; 20W@15~18GHz
VSWR, Max:
1.25
VSWR Variation, Max:
0.05
Insertion Loss, Max:
0.3dB
Insertion Loss Variation, Max:
0.05dB
Rotation Speed, Max:
300rpm
Starting Torque:
≤0.1Nm
Operating Temperature:
-40℃～+70℃
Storage Temperature:
-55℃~+85℃
Humidity:
<95%
Housing Material:
Stainless Steel
Protection Rating:
IP41
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal,Western Union
Supply Ability
1000pcs per month
Product Description

Flange-Mount Single-Channel RF Rotary Joint


RCN01-18HZ  is CENO  flange-mounted single-channel RF rotary joint delivers continuous 360° rotation transmission of high-frequency radio signals between stationary and rotating equipment. Built with precisely machined coaxial inner cavity to maintain stable impedance matching during rotation, it realizes low insertion loss and slight VSWR fluctuation. Adopting stainless steel housing and wear-resistant contact coating, the component ensures consistent long-term electrical performance. This standardized rotary connector complies with RoHS requirements, supports bulk wholesale supply. Customization on frequency range, connector types and marking options is available to satisfy diverse microwave test and wireless rotary equipment demands.


Features

  • Low VSWR
  • Long lifespan
  • Flange mounting
  • Low signal loss

Applications

  • Microwave tester
  • Radar pan-tilt
  • RF detection unit
  • Wireless rotary device

Optional

  • Connector types
  • Frequency tuning
  • Enhanced sealing
  • Custom dimension

Specification

RCN01-18HZ

Specification

Channel

1

Interface Type

SMA-K (50Ω)

Frequency Range

DC-18GHz

Average Power, Max

100W@DC~2GHz; 50W@2~8GHz; 25W@8~15GHz; 20W@15~18GHz

VSWR, Max

1.25

VSWR Variation, Max

0.05

Insertion Loss, Max

0.3dB

Insertion Loss Variation, Max

0.05dB

Rotation Speed, Max

300rpm

Starting Torque

≤0.1Nm

Operating Temperature

-40℃～+70℃

Storage Temperature

-55℃~+85℃

Humidity

<95%

Housing Material

Stainless Steel

Protection Rating

IP41


Outline drawing

Flange-Mount Single-Channel RF Rotary Joint


CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.


Flange-Mount Single-Channel RF Rotary Joint




Tags:

slip ring rotary joint electrical connector,

rotary joint electrical connector,

rotating electrical connector slip ring
