Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation
  • Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation
  • Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation
  • Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation
  • Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation
  • Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation
  • Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation
  • Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation
Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation

Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN000-08P5-02P2-01F
Product Details
Protection Rating:
IP65
Operating Humidity:
10–90% RH Or Below
Operating Temperature:
-30°C To +80°C
Wire Specifications:
AWG12# Tinned Teflon; AWG17# Tinned Teflon
Operating Voltage:
0–350 VDC
Number Of Circuits/Current:
8 Circuits × 30 A; 2 Circuits × 10 A
Dielectric Strength:
≥1000 VAC @ 50 Hz (P) Between Two Circuits
Insulation Resistance:
≥300 MΩ @ 500 VDC (P)
Contact Resistance Fluctuation:
≤30 MΩ (at 50 Rpm Operation)
Wire Length:
Rotor: 1000 Mm; Stator: 2000 Mm
Operating Speed:
0–250 Rpm
Mounting Method:
Stator End Fixed By Flange; Rotor End Driven By Flat Position
Contact Material:
Precious Metal
Housing Material:
Stainless Steel + Aluminum Alloy
Number Of Channels:
1
Fiber Mode:
Single-mode (9-125 μm)
Operating Wavelength:
1310/1550 Nm
Insertion Loss:
≤1.5 DB
Return Loss:
≥40 DB
Cable Length:
Stator: 2000 Mm,Rotor: 1000 Mm
Connector Type:
Both LC
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal,Western Union
Supply Ability
1000pcs per month
Product Description

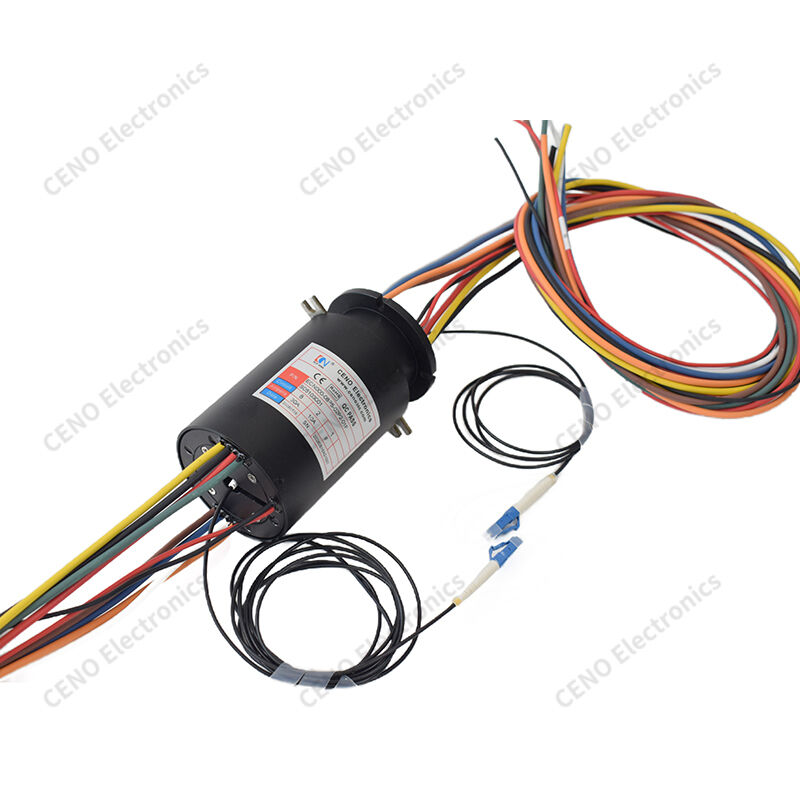

Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation


ECN000-08P5-02P2-01F  is CENO  opto-electric hybrid flange slip ring combines electrical contact modules and fiber optic rotary joint. It supports 360° continuous unlimited rotation, transferring power, control signals and high-speed optical data simultaneously. Gold-alloy contacts guarantee steady electrical performance, and independent optical unit realizes low-loss fiber communication. CE and RoHS certified, it is engineered for OEM rotary equipment and bulk industrial rotating system assembly.


Features

  • Flange mounted
  • Solid shaft
  • Electro-optic hybrid
  • Gold alloy contacts
  • Low signal loss
  • Wide temp range

Applications

  • Rotary gimbals
  • Radar equipment
  • Underwater units
  • Industrial robots
  • Medical apparatus
  • Automation turntables

Optional

  • Custom channel count
  • Various fiber connectors
  • Variable cable length
  • Upgraded IP grade
  • OEM logo print
  • Special wire gauge

Specification


ECN000-08P5-02P2-01F

Specification

Protection Rating

IP65

Operating Humidity

10–90% RH or below

Operating Temperature

-30°C to +80°C

Wire Specifications

AWG12# tinned Teflon; AWG17# tinned Teflon

Operating Voltage

0–350 VDC

Number of Circuits/Current

8 circuits × 30 A; 2 circuits × 10 A

 Dielectric Strength

≥1000 VAC @ 50 Hz (P) between two circuits

Insulation Resistance

≥300 MΩ @ 500 VDC (P)

Contact Resistance Fluctuation

≤30 mΩ (at 50 rpm operation)

Wire Length

Rotor: 1000 mm; Stator: 2000 mm

Operating Speed

0–250 rpm

Mounting Method

Stator end fixed by flange; rotor end driven by flat position

Contact Material

Precious metal

Housing Material

Stainless steel + aluminum alloy





Number of channels

1

Fiber mode

Single-mode (9-125 μm)

Operating wavelength

1310/1550 nm

Insertion loss

≤1.5 dB

Return loss

≥40 dB

Cable length

Stator: 2000 mm,Rotor: 1000 mm

Connector type

Both LC


Outline drawing

Opto Electric Hybrid Flange Slip Ring for 360 Degree Continuous Rotation


CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
