Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
  • Opto Electric Slip Ring for Marine Instruments and Factory Automation
Opto Electric Slip Ring for Marine Instruments and Factory Automation

Opto Electric Slip Ring for Marine Instruments and Factory Automation

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN000-08P-54S-02F
Product Details
Protection Rating:
IP51
Operating Humidity:
60% RH Or Below
Operating Temperature:
-40 ~ +55°C
Storage Temperature:
-50~+70°C
Wire Specifications:
AWG14#/22# Tinned Teflon @UL; Two-core Twisted Shielded Cable (0.14 Mm²); CAT5e
Operating Voltage:
0–220 VAC/VDC
Number Of Circuits/Current:
6 Circuits × 10 A (220 V); 2 Circuits × 5 A (24 V); 44 Circuits × Signal; 2 Groups × RS422
Dielectric Strength:
≥1000 VAC @ 50 Hz Between Two Circuits (power); ≥300 VAC @ 50 Hz Between Two Circuits (signal)
Insulation Resistance:
≥500 MΩ @ 500 VDC (power); ≥100 MΩ @ 100 VDC (signal)
Contact Resistance Fluctuation:
≤30 MΩ (at 50 Rpm Operation)
Wire Length:
Rotor: 1000 Mm; Stator: 1000 Mm
Operating Speed:
0–100 Rpm
Mounting Method:
Both Rotor End And Stator End Fixed By Flange
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy, Sandblasted And Black Anodized
Other:
Complies With GJB150.16A-2009 Vibration Test
Fiber Mode:
SM
Number Of Channels:
2
Operating Wavelength:
1310/1550 Nm
Insertion Loss:
≤3.0 DB
Return Loss:
≥45 DB
Cable Length:
Rotor: 1000 Mm,Stator: 1000 Mm
Connector Type:
FC/FC
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal,Western Union
Supply Ability
1000pcs per month
Product Description

Opto Electric Slip Ring for Marine Instruments and Factory Automation

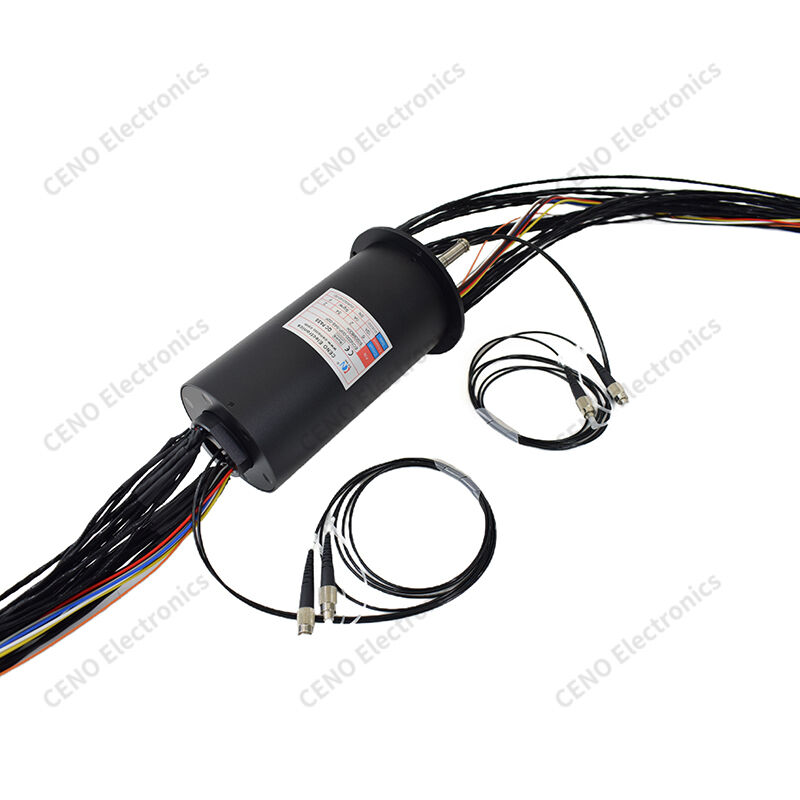

ECN000-08P-54S-02F  is CENO  flange type opto-electric slip ring adopts solid rotating shaft, integrating electric contact assembly and fiber rotary coupler. It enables endless 360° rotation to deliver power, control commands and high-rate optical data. Precious metal contacts ensure stable electrical performance. Separate optical path keeps minimal signal attenuation. CE & RoHS approved, built for heavy-duty OEM rotary machinery and bulk system integration.


Features

  • Flange installation
  • Solid rotating shaft
  • Opto-electric combo
  • Precious metal contacts
  • Minimal attenuation
  • Broad temperature span

Applications

  • Radar scanners
  • Heavy gimbals
  • Marine instruments
  • Rotary worktables
  • Inspection rigs
  • Factory automation

Optional

  • Custom circuit quantity
  • Diverse fiber connectors
  • Tunable cable length
  • Enhanced IP rating
  • Custom branding
  • Special cable gauges

Specification


ECN000-08P-54S-02F

Specification

Protection Rating

IP51

Operating Humidity

60% RH or below

Operating Temperature

-40 ~ +55°C

Storage Temperature

-50~+70°C

Wire Specifications

AWG14#/22# tinned Teflon @UL; two-core twisted shielded cable (0.14 mm²); CAT5e

Operating Voltage

0–220 VAC/VDC

Number of Circuits/Current

6 circuits × 10 A (220 V); 2 circuits × 5 A (24 V); 44 circuits × signal; 2 groups × RS422

Dielectric Strength

≥1000 VAC @ 50 Hz between two circuits (power); ≥300 VAC @ 50 Hz between two circuits (signal)

Insulation Resistance

≥500 MΩ @ 500 VDC (power); ≥100 MΩ @ 100 VDC (signal)

Contact Resistance Fluctuation

≤30 mΩ (at 50 rpm operation)

Wire Length

Rotor: 1000 mm; Stator: 1000 mm

Operating Speed

0–100 rpm

Mounting Method

Both rotor end and stator end fixed by flange

Contact Material

Precious metal

Housing Material

Aluminum alloy, sandblasted and black anodized

Other

Complies with GJB150.16A-2009 vibration test





Fiber mode

SM

Number of channels

2

Operating wavelength

1310/1550 nm

Insertion loss

≤3.0 dB

Return loss

≥45 dB

Cable length

Rotor: 1000 mm,Stator: 1000 mm

Connector type

FC/FC


Outline drawing

Opto Electric Slip Ring for Marine Instruments and Factory Automation


CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
