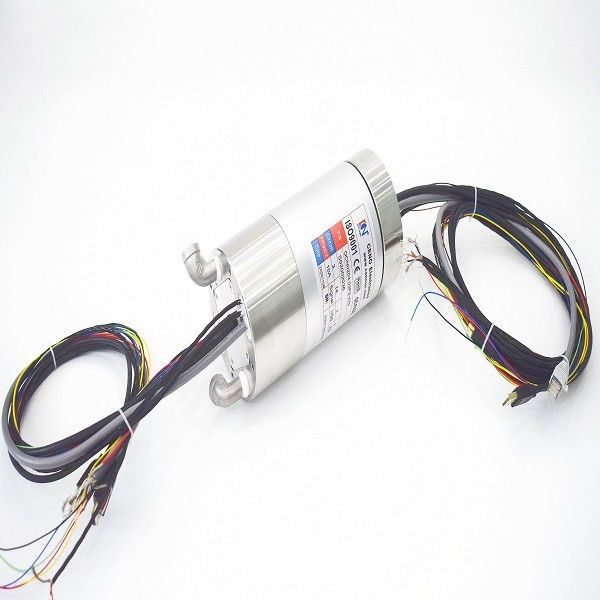

Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring
  • Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring
  • Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring

Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number QCN0203-03P3-47S
Product Details
Through Hole Size:
Blind Hole
Rating Voltage:
0~220VAC/VDC
Operating Speed:
0-100rpm
USB Signal Channel:
1 Channel USB2.0
Contact Material:
Precious Metal
Circuit:
3*10A,5*signal ,1*RS422,1*RS232,1*USB2.0, 1*1000M Ethernet ,1*HDMI .2*liquid
Temperature:
-45°C/+ 80°C
Hydraulic Channel:
2 Channel*water (G3/8’’)
High Light:

USB2.0 Slip Ring

,

USB2.0 Ethernet Slip Ring

,

USB2.0 Hydraulic Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring



Power signal and hydraulic integrated slip ring with USB2.0 ,1000M Ethernet ,aluminium housing ,for food processing



This is a integrated slip ring with 3 rings 10A,5 rings normal signal ,1 group RS422,1 group RS232,1 group USB2.0,1 group 1000M Ethernet and 1 group HDMI .with 2 channels for liquid, the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, wave guide, gas and liquid and other joints.Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.Any requirement, please feel free to contact us ,and we will recommend the most suitable product to you.



Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring 0





Features

  • Integrate hydraulic,pneumatic
  • Low torque, smooth rotation
  • Different sealing type
  • Integrate power & various signal
  • Temper -45°C/+ 80°C
  • Two channels for liquid
  • Low torque







Applications

  • Automatic equipment
  • Food processing
  • Machinery manufacturing
  • Electrical test equipment
  • Tilt camera mounts
  • Exhibit display equipment
  • Robotics
  • Mini-wire-rolling machine



Optional

  • Air /Liquid channel
  • Circuit number
  • Current rating
  • Interface size
  • IP protection







Specification





QCN0203-03P3-47S Specification
Current

3*10A,5*signal ,1*RS422,1*RS232,1*USB2.0,

1*1000M Ethernet ,1*HDMI .2*liquid

Voltage 0~220VAC/VDC
Electrical noise 30mΩ(50rpm)
Dielectric strength

≥1500V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@100VDC (signal)

Operating speed 0-100 rpm
Contact material Precious metals
Housing material Aluminum alloy
Hydraulic channel 2 channel*water (G3/8’’)
Pressure ≤1.0MPa






Outline drawing





Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring 1







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring 2



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Hydraulic Integrated 1000M Ethernet USB2.0 Slip Ring 4



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
