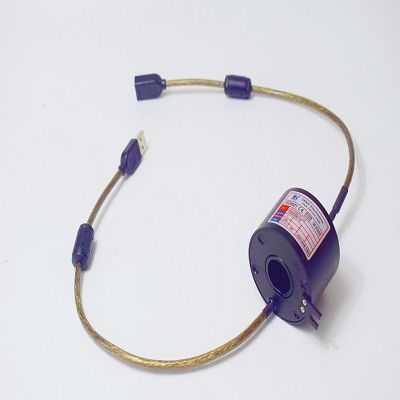

Inner Hole 20mm USB2.0 Through Bore Slip Ring 300rpm 24VAC
  • Inner Hole 20mm USB2.0 Through Bore Slip Ring 300rpm 24VAC
  • Inner Hole 20mm USB2.0 Through Bore Slip Ring 300rpm 24VAC

Inner Hole 20mm USB2.0 Through Bore Slip Ring 300rpm 24VAC

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN020-01U2
Product Details
Through Hole Size:
20mm
Rating Voltage:
0~24VAC/VDC
Operating Speed:
0-300rpm
USB Signal Channel:
1 Channel USB2.0
Contact Material:
Precious Metal
Temperature:
-20°C/+ 60°C
Housing Material:
Aluminium Alloy Sandblasted Black Oxide
Application:
Robotics ,Cameras
High Light:

USB2.0 Through Bore Slip Ring

,

24VAC Through Bore Slip Ring

,

Through Bore USB2.0 Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

Inner Hole 20mm USB2.0 Through Bore Slip Ring 300rpm 24VAC



Inner hole 20mm through bore slip ring with USB2.0 signal,aluminium housing ,for robotics,cameras



ECN020-01U2 is a high definition signal slip ring with 1 group USB2.0, developed by CENO company, which taking the lead of originality in its area with advanced design idea and manufacturing technology. It is perfectly applied to Video Surveillance field and other signals in 360° continuous rotation. It is of high quality and reliability.Compact size, stable electrical and signal performance, low friction and torque, thicker precious metal plate, longer life.Can be apply for automatic machines which require rotating transfer electric/signal/gas/liquid, solve wire winding problems.We can make customized slip ring to rotating transfer RS485/232/422, CANBUS, Profibus, CC-link, USB3.0, Gigabit Ethernet etc.





Features



  • High-performance
  • Low torque, smooth rotation
  • 20mm through bore
  • Easy to install





Applications



  • Turntable equipment
  • Radar system
  • Medical machine
  • Robotics
  • Display equipment
  • Cameras
  • Medical machine









Optional



  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material







Specification





ECN020-01U2 Specification
Circuits & Current 1 group *USB2.0 signal
Voltage 0~24VAC/VDC
Electrical noise Max 30mΩ (50rpm)
Dielectric strength ≥500V@50Hz
Insulation resistance ≥100MΩ@100VDC
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP54
Through hole size 20 mm






Outline drawing





Inner Hole 20mm USB2.0 Through Bore Slip Ring 300rpm 24VAC 0









Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



Inner Hole 20mm USB2.0 Through Bore Slip Ring 300rpm 24VAC 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Inner Hole 20mm USB2.0 Through Bore Slip Ring 300rpm 24VAC 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
