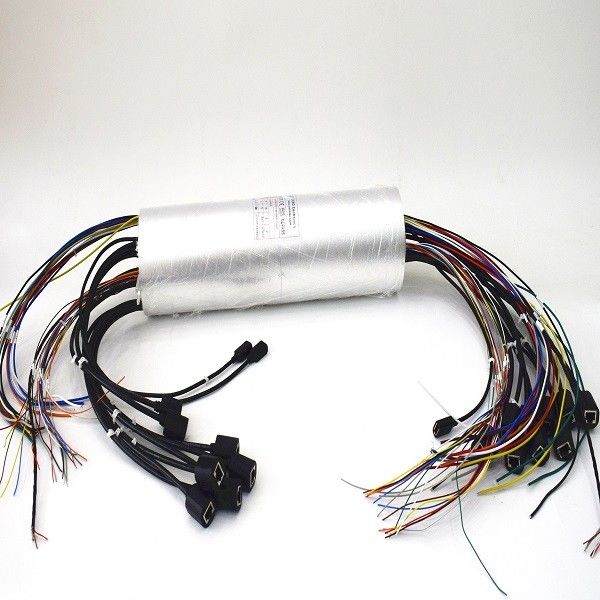

38.1mm Inner Bore Hollow Shaft Slip Ring Integrate USB2.0 RS232
  • 38.1mm Inner Bore Hollow Shaft Slip Ring Integrate USB2.0 RS232
  • 38.1mm Inner Bore Hollow Shaft Slip Ring Integrate USB2.0 RS232

38.1mm Inner Bore Hollow Shaft Slip Ring Integrate USB2.0 RS232

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN038-27P-15S-08EG-02U2
Product Details
Through Hole Size:
38.1mm
Rating Voltage:
0~220VAC/VDC
Operating Speed:
0-300rpm
USB Signal Channel:
1 Channel USB2.0
Housing Material:
Aluminium Alloy
Application:
Motion Simulator,Automation Equipment
Circuits:
16*10A,3*2A,2*1A,6*5A,11*signal,1*RS232,8*1000M Ethernet ,2*USB2.0
Contact Materials:
Precious Metal
High Light:

38.1mm Hollow Shaft Slip Ring

,

220VAC Hollow Shaft Slip Ring

,

USB2.0 Slip Ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Cartons/As request
Delivery Time
1 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description



38.1mm inner bore hollow shaft slip ring integrate USB2.0 ,RS232 & 1000M Etherenet signal,working speed 0~ 300 rpm







USB slip ring solve the problem of large capacity data signal transmission between system components rotating connection, and provides the best technical solutions.CENO can integrate various of signals and different current rating in one slip ring . ECN038-27P-15S-08EG-02U2A is one integrate current ,RS232, 1000M Ethernet signal ,USB2.0. Also can provide such kind of through bore slip ring with inner bore from 3mm to 980mm.USB signal provides convenient interactive port for all kinds of communication equipment, so USB2.0 conductive slip ring has been widely used in all kinds of communication systems.Please contact with CENO if you have any special requirements about slip ring.









Features



  • High-performance
  • Transmit USB2.0 signal
  • Support 1000M Ethernet
  • Combine signal & power
  • Stable transmission
  • Precious metal contacts
  • Compact size









Applications



  • Turntable equipment
  • Radar system
  • Process control equipment
  • Motion simulator
  • Automation equipment
  • Wrapping machinery
  • Exhibit Display machinery











Optional



  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material







Specification





ECN038-27P-15S-08EG-02U2 Specification
Circuits & Current 16*10A,3*2A,2*1A,6*5A,11*signal,1*RS232,8*1000M Ethernet ,2*USB2.0
Voltage 0~220VAC/VDC
Dielectric strength

≥1000V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@100VDC (signal)

Electrical noise ≤30mΩ (50 rpm)
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminum alloy
IP grade IP54
Inner hole size 38.1mm










Outline drawing





38.1mm Inner Bore Hollow Shaft Slip Ring Integrate USB2.0 RS232 0
















Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



38.1mm Inner Bore Hollow Shaft Slip Ring Integrate USB2.0 RS232 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

38.1mm Inner Bore Hollow Shaft Slip Ring Integrate USB2.0 RS232 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
