Through hole Ø30mm 2 channels for USB signal slip ring with low electric noise

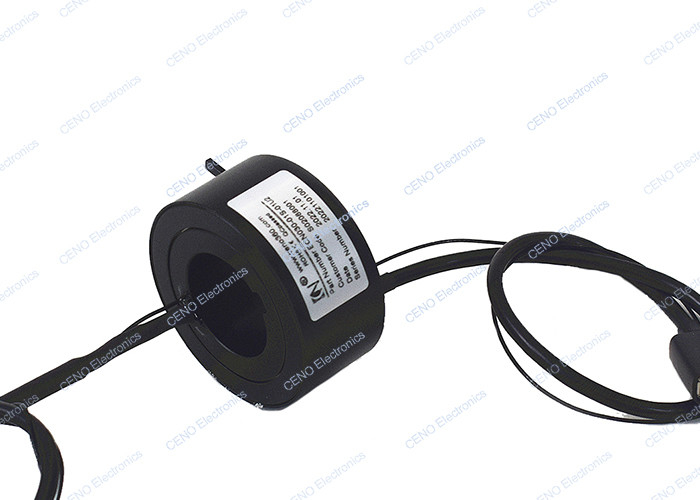

ECN030-01S-01U2 is USB signal through hole slip ring with external diameter Ø30mm from CENO electronics. The hollow shaft slip ring size from 3mm to 980mm are optional, we can provide different solutions according to customer’s requirements. The hollow shaft slip ring is economical compare with other integrated slip rings. There are 1 circuit for signal and one channel for USB2.0 and the circuits & signals can be optional according to different environment and application. Due to it’s quiet mechanical system operation, advance fiber brush, multi-point contact and low friction and long life, it’s mainly used on the medical rotary CNC worktable, automation equipment, detection equipment and robotic arms etc.
Features
Direct plug and play connector
Stable transmission, no package loss and low insertion loss
Up to achieve 12 circuits
Applications
Automatic machine
Detection equipment
Robotic arms
Electric crane
Optional
Circuit number & Current
Working speed & temperature
Protection grade & materials
Installation size
Specification
|
ECN030-01S-01U2
|
Specification |
| Current & Circuits |
1 circuits * signal; 1 group * USB2.0 |
| Rating Voltage |
0~220 VAC/VDC |
| Dielectric strength |
≥300VAC@50Hz |
| Isolation resistance |
≥100MΩ@300VDC |
| Electrical noise |
≤30mΩ (50rpm) |
| Operating speed |
0~300rpm |
| Contact material |
Precious metals |
| Housing material |
Aluminum alloy |
| Working temperature |
-20°C~+60°C |
| Working humidity |
Max60% |
| IP protection grade |
IP51 |
| Through hole size |
Ø30mm |
| Lead wire size |
AWG24# Tin coated Teflon ®UL
USB2.0 Lead wire
|
| Lead wire length |
Rotor : 300mm
Stator : 300mm
|
| Installation way |
Rotor side fixed on the main shaft with screws |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
