1 Channel Pneumatic Rotary Union For Industrial Automatic Machinery
  • 1 Channel Pneumatic Rotary Union For Industrial Automatic Machinery
  • 1 Channel Pneumatic Rotary Union For Industrial Automatic Machinery
  • 1 Channel Pneumatic Rotary Union For Industrial Automatic Machinery

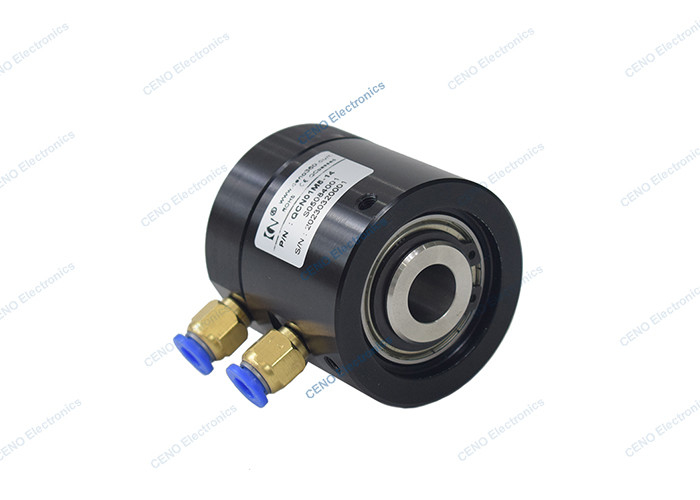

1 Channel Pneumatic Rotary Union For Industrial Automatic Machinery

Place of Origin China
Brand Name CENO
Certification ISO9001,CE,RoHS
Model Number QCN01M5-14
Product Details
Channels:
1* Air
Operation Pressure:
-90KPa~20KPa
Rotary Torque:
≤3.0N*m
Working Speed:
0 ~ 5000rpm
Air Tube:
Ø6mm
Working Temperature:
-20°C~+60°C
Inner Diameter:
Ø14mm
Housing Material:
Aluminum Alloy + Stainless Steel
High Light:

ID 14mm Pneumatic Rotary Union

,

5000rpm Pneumatic Rotary Union

,

Automatic Machinery Air Rotary Union RoHS

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
2 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

1 Channel Pneumatic Rotary Union For Industrial Automatic Machinery



QCN01M5-14 is a Pneumatic Rotary Union with 1 channel air and ID 14mm through hole for industrial automation equipment applications from CENO Electronics. CENO’s Pneumatic Hydraulic series Rotary Unions are specially designed for different environment such as optical maser, machine tool, textile machinery, medical equipment. It has different sealing forms can be selected according to different applications, It has stable performance, long service life and the rotation speed up to 800rpm with maintenance-free. For more information about how CENO’s slip ring can fit your specific applications, please contact us freely.





1 Channel Pneumatic Rotary Union For Industrial Automatic Machinery 0






Features

  • Stable performance and with long service life
  • Different sealing forms
  • Can be integrated various data
  • Install easily & transmit stably



Applications

  • Industrial Automation Machinery
  • Optical Maser
  • Machine tool
  • Harsh environment
  • Medical equipment



Optional

  • Air channels
  • Boundary dimension
  • Contact / Housing Materials
  • Air pressure
  • Working speed





Specification

QCN01M5-14

Parameter
Channel 1 channel * Air
Pressure -90KPa ~+20KPa
Rotary torque ≤3N*m
Working speed 0 ~ 5000rpm
Air tube Ø6mm
Working temperature -20°C~+60°C
Inner diameter Ø14mm
Housing material Aluminum Alloy + Stainless steel









Outline Drawing

1 Channel Pneumatic Rotary Union For Industrial Automatic Machinery 1







Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.





FAQ



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

1 Channel Pneumatic Rotary Union For Industrial Automatic Machinery 2



Certification

ISO9001,CE,RoHS,UL,Explosion-proof
