| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | QCN0202 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Channels: | 2 Channels * Liquid | Contact Inch: | G 1/4” |
|---|---|---|---|
| Pressure Max: | 0.5MPa | Working Speed: | 100rpm |
| Housing Material: | Aluminum Alloy + Stainless Steel | Working Temperature: | -20°C~+60°C |
| High Light: | 2 channels pneumatic rotary union,liquid pneumatic rotary union,industry application pneumatic rotary joint |
||

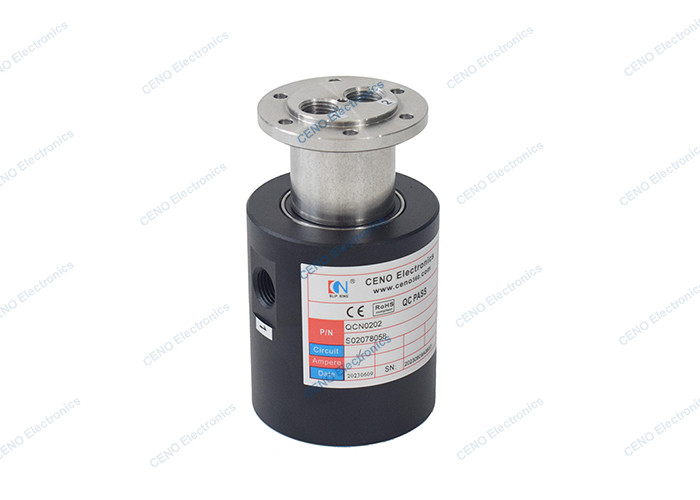

2 Channels Liquid Pneumatic Rotary Union For Industry Application
QCN0202 is CENO new Hydraulic Rotary Union with 2 channels for liquid. Hydraulic rotary union is often called fluid product swivel too. The pneumatic / hydraulic rotary union is a rotary joint specially used to transmit two types of media, gas and liquid, including compressed air, hydrogen, water, nitrogen oil, coolant and so on. Rotary joints adopt different sealing forms for different applications. The application of the rotary unions reach to kinds of processing and manufacture industry. Such as the metallurgy, machine tools, power generation, petroleum and feed processing etc.
Features
Applications
Optional
Specification
|
QCN0202 |
Specification |
| channels | 2 channels * liquid |
| Contact inch | G 1/4” |
| Pressure Max | 0.5MPa |
| Working speed | 100rpm |
| Housing material | Aluminum Alloy + stainless steel |
| Working temperature | -20°C~+60°C |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
Contact Person: Lam
Tel: +8615767660191
