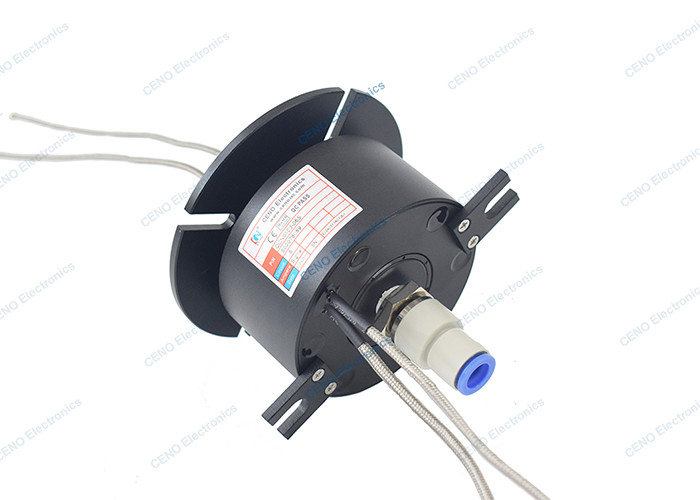

1MPa Ø10mm Tub G1/4" Pneumatic Integrate Rotary Union with Thermo couple signal
QCN0102-06S is CENO new integrate Pneumatic slip ring combined 2 group K-type Thermo signal with 1 channel gas. This slip ring is designed for some special applications that require both Thermo couple and pneumatic rotary unions. Pneumatic / Hydraulic medium could be air, hydrogen, nitrogen, water, oil, coolant, etc. Continuous precious metal connection ensuring minimal thermal error making the design compatible with thermo couple and strain gauge instrumentation in general purpose instrumentation and testing equipment. For more information please contact us.
Features
Applications
Optional
Specification
|
QCN0102-06S |
Specification |
| Current & Circuits | 2 group * K-type Thermo couple |
| Rating Voltage | 0-24VAC/VDC |
| Dielectric strength | ≥300VAC@50Hz |
| Isolation resistance | ≥100MΩ@100VDC |
| Contact resistance | 30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60%RH |
| IP protection grade | IP51 |
| Operating speed | 0~250rpm |
| Lead wire size | K - type Thermo couple wire |
| Lead wire length | Rotor : 300mm; Stator : 300mm |
| Outer diameter | Ø86mm |
| Rotation Way | Flange installation |
| The Road | 1 channel * Gas |
| Connect type | Ø10mm Tub @ G1/4” |
| Pressure, Max | ≤1.0MPa |
Outline Drawing
Our company is proud to introduce our latest product - the Integrated Servo Motor Ethernet Slip Ring with Pneumatic Rotary Union. This innovative product is designed to provide exceptional performance and reliability in harsh industrial environments.
First and foremost, our slip ring is integrated with a servo motor, providing high-precision positioning and motion control capabilities. With a maximum speed of 5000 RPM and a torque range of 0.1-5 Nm, this product is perfect for a wide range of industrial applications.
In addition, our slip ring features a high-speed Ethernet connection, ensuring seamless communication between devices. With data transfer rates of up to 1000 Mbps, you can be sure that your data will be transmitted quickly and securely.
Another key feature of our product is the pneumatic rotary union. This component allows for the transfer of compressed air, hydraulic fluid, or other gases and liquids through the slip ring, making it ideal for use with pneumatic and hydraulic systems.
Our integrated slip ring is also highly durable, designed to withstand extreme temperatures, humidity, and vibration. With a protection rating of IP65, you can rest assured that your equipment will be well-protected in even the harshest conditions.
Overall, our Integrated Servo Motor Ethernet Slip Ring with Pneumatic Rotary Union is an excellent choice for anyone in need of a high-quality, reliable slip ring for industrial applications. Contact us today to learn more or to place an order.
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
