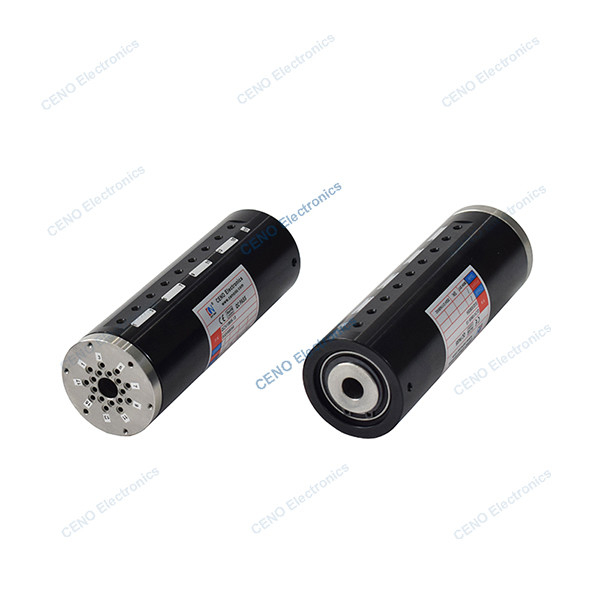

18 channels air gas pneumatic rotary union slip ring with pressure 0.5MPa
QCN18M5-13 is CENO new customized Pneumatic Rotary Union with 16 channels pressure air and 0 ~ 0.5MPa, commonly designed for the equipment that requires continuous rotation, such as the rotary joints or hydraulic pressure system etc. Technical features advanced sealing method to prevent leakage, to ensure that gas air or liquid continuous flow during rotation when it is transferring in rotating systems. Pneumatic hydraulic rotary unions can be integrate electric power or kinds signal as special application. For more information please contact us.
Features
- 18 channels design & optional
- 0~0.5MPa pressure and optional
- Air media and optional
- Can integrate kinds signal / data
- Install easy & Free maintenance
Applications
- Automatic machine
- Hydraulic pressure system
- Robot arms
- Filling machinery
- Medical equipment
Optional
- Channels and media
- Temperature and pressure
- Contact / Housing Materials
- Out structure
- Working speed
Specification
|
QCN18M5-13
|
Specification |
| Channels |
18 Channels *Air |
| Pressure |
0 ~ 0.5MPa |
| Housing material |
Stainless steel |
| Working temperature |
-20°C~+60°C |
| Working speed |
0 ~ 150 rpm |
| Connector size |
Rotor: O style circular sealing ring
Stator: M5
|
| Rotation Torque |
≤ 10N*m |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
