Integrate Pneumatic hydraulic rotary union slip ring with profinet signal

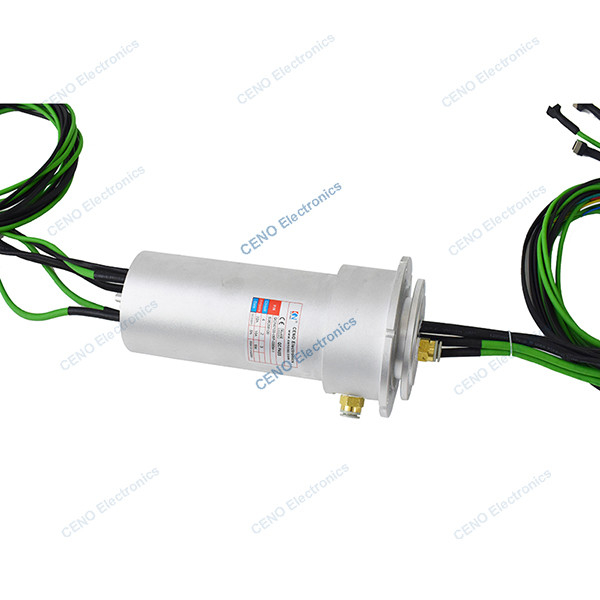

QCN0103-06P-03EM-1 is CENO integrate pneumatic rotary union integrate electric power, profinet signal and 1 channel air with pressure 8 Bar designed for the industry robots. CENO have designed hundreds type of integrate pneumatic hydraulic rotary unions during past twenty years. Most parameters can be customized for special application, such as the integrated signals, transmission media, air pressure and out structure etc, for more information about CENO integrate slip rings please contact us.
Features
- Supports synchronous transmit of power, signals and media.
- High quality and Precision processing & comply with EMC
- Can be integrated various data
Applications
- Automatic machine
- Industry robots
- Intelligent & control system
- Multi-function equipment
- Medical equipment
Optional
- Circuit, Voltage, Current
- Sealing type and IP Grade
- Media and Materials
- Integrate signal date type
- Working speed & temperature
Specification
|
QCN0103-06P-03EM-1
|
Specification |
| Circuits & Current |
4*32A; 2*16A; 3* Profinet |
| Rating Voltage |
0~400 VAC/VDC |
| Dielectric Strength |
≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; 100MΩ@300VDC |
| Electrical Noise |
30mΩ (50rpm) |
| Lead wire length |
As customized |
| Working speed |
0~50 rpm |
| Rotation Way |
Flange installation |
| Installation Way |
Contact material: Gold to gold / precious metal |
| Housing material |
Aluminum Alloy |
| Protection |
IP54 |
| Working humidity |
60% |
| Working temperature |
-20℃ ~+60℃ |
| Rotary Joint |
|
| Channel |
1 channel* Air |
| Interface size |
G3/8” Ø10mm tube |
| Pressure |
8 Bar |
| Rotation Torque |
≤ 8N*m |
