Pneumatic-Electric Integrated Slip Ring for 360° rotation with multi-channel air

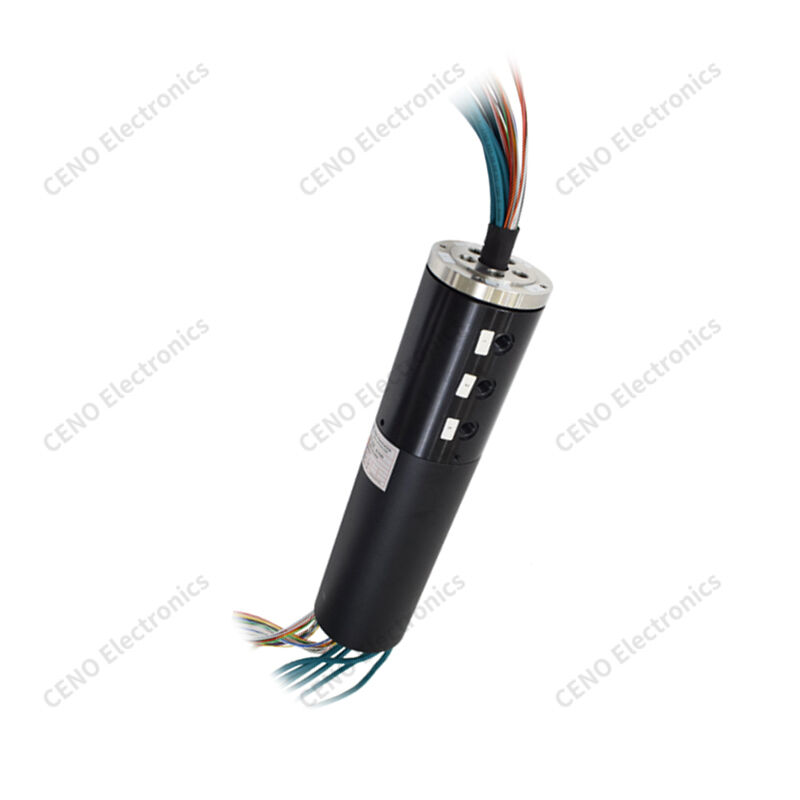

QCN0502-45S-06EM is CENO Pneumatic-Electric Integrated Slip Ring unites multi-channel pneumatic rotary joints, high-current shielded power circuits and multi-core signal lines into one compact aluminum cylinder, supporting unlimited 360° continuous rotation without tangled tubes or cables. Equipped with multiple independent sealed gas ports, separated shielded power cables and multi-color thin signal wires, it stably transmits compressed air, vacuum, power supply and precision control signals simultaneously. Adopting stainless steel mounting flange and black anodized housing, it complies with CE and RoHS standards for complex automated rotary stations requiring multi-path gas-electric synchronous transmission.
Features
- Multi gas channels
- Shielded power wire
- Multi-core signal cable
- 360° free rotation
- Independent sealed airways
Applications
- Lithium battery machines
- Rotary test fixture
- Vacuum rotary platform
- Robotic rotary joint
- Semiconductor rotary station
Optional
- Custom gas ports
- Extra signal circuits
- Higher load current
- Reinforced IP rating
- Custom flange size
Specification
|
QCN0502-45S-06EM
|
Specification
|
|
Protection Rating
|
IP51
|
|
Operating Humidity
|
Below 60% RH
|
|
Operating Temperature
|
-20°C ~ +60°C
|
|
Wire Specifications
|
AWG #24 tin-plated Teflon wire; CAT6
|
|
Operating Voltage
|
0 ~ 30 VAC/VDC
|
|
Ring/Channel Current Ratings
|
45 channels × signal; 6 groups × 100 Mbps Ethernet
|
|
Dielectric Strength
|
≥300 VAC @ 50 Hz between any two channels
|
|
Insulation Resistance
|
≥100 MΩ @ 300 VDC
|
|
Contact Resistance Fluctuation
|
≤30 mΩ (at 50 rpm)
|
|
Wire Length
|
Rotor: 450 mm; Stator: 4,000 mm
|
|
Operating Speed
|
0 ~ 20 rpm
|
|
Mounting Method
|
Rotor flange mounting
|
|
Contact Material
|
Precious metal / gold-to-gold
|
|
Housing Material
|
Stainless steel + aluminum alloy
|
|
|
|
|
Number of Channels
|
5 channels × compressed air (connection interface: G1/4" thread, compatible with ø8 mm tubing)
|
|
Working Pressure
|
1.0 MPa
|
|
Rotating Torque
|
≤10.0 N·m
|
Outline Drawing
Remark
Integrated slip rings are a must-have for machinery that requires both electric power and pneumatic or hydraulic transmission. These slip rings consist of a pneumatic rotary union and a rotary signal joint, which combine to give you 1 channel for air and 50 circuits for a signal collector.
The benefits of an integrated slip ring are many. First off, it simplifies the wiring and installation process for the end user. With just one assembly, they get the best of both worlds. Instead of having to install separate slip rings for power and transmission, they can now rely on a single integrated slip ring. This not only saves time but also reduces the complexity of the machine as a whole.
One other benefit is that an integrated slip ring helps reduce the number of points of potential failure. Instead of having to deal with multiple components, only one integrated slip ring is needed. This means fewer potential points of failure, which in turn means a more robust and reliable machine.
Another advantage of an integrated slip ring is that it offers enhanced operational flexibility. With one assembly, users can rotate and transmit simultaneously without any loss of signal or pressure. This is especially useful in applications where the machine is required to rotate while at the same time delivering air or fluid.
In conclusion, integrated slip rings provide machinery designers and operators with a reliable, easy to install, and versatile solution for transmission coupled with power requirements. With a single assembly combining air and signal collector channels, integrated slip rings are a convenient and efficient option for any machine application where reliability and flexibility are a top priority.
