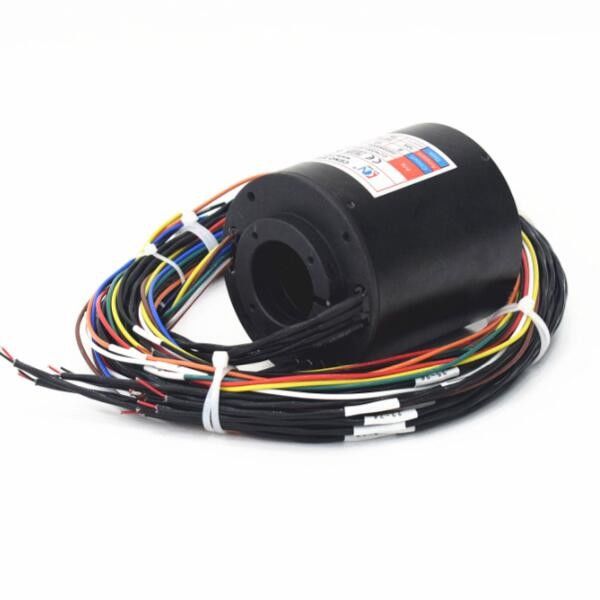

Military Aluminium alloy Industrial Slip Ring Solid Through Bore For Display
  • Military Aluminium alloy Industrial Slip Ring Solid Through Bore For Display
  • Military Aluminium alloy Industrial Slip Ring Solid Through Bore For Display

Military Aluminium alloy Industrial Slip Ring Solid Through Bore For Display

Place of Origin China
Brand Name CENO
Certification ISO9001
Model Number ECN000-08P2-18S
Product Details
Circuit Number:
8*10A,18*signal
Voltage:
440VAC/VDC
Contact Material:
Precious Metal
IP Grade:
IP51
Operating Speed:
0~250 Rpm
Housing Material:
Aluminium Alloy
Application:
Measurement Instruments
Inner Diameter:
Solid Bore
Working Temperature:
-40℃~+80℃
High Light:

Aluminium alloy Industrial Slip Ring

,

440 VAC Industrial Slip Ring

,

440 VAC through bore slip ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Crate/As request
Delivery Time
2 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

Military Aluminium alloy Industrial Slip Ring Solid Through Bore For Display



Customized slip ring meet military standards,solid through bore with high performance,working speed 250rpm,used for display,can be customized with different solutions.


CENO is a technical manufacturing company,it’s has abundant experience in design and assembling for specific industries.CENO can provide you with different customized slip rings.the center hole is available from 0 to 980mm,it’s used for pass through the drive shaft,gas-liquid passage,also can integrate with high frequency,fiber,encoder,wave guide,gas and liquid and other joints.ECN000-08P2-18S is a solid inner bore slip ring,with 8 rings of 10A power & 18 rings of signal,working speed range 0- 250rpm.Any special request please contact with us,our professional R&D team will provide you with the best solution very soon.CENO email address is sales@ceno360.com.






Specification



ECN000-08P2-18S                                 Specification
Circuits & Current 8*10A,18*signal
Voltage 440VAC/VDC
Dielectric strength

≥1000V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@300VDC (power)

≥100MΩ@300VDC (signal)

Electrical noise ≤10mΩ (50 rpm)
Operating speed 0-250 rpm
Contact material Precious metal
Housing material Aluminum alloy
IP grade IP51
Working temperature -40℃~+80℃





Features

  • Meet military standards
  • High performance
  • Low torque
  • Stable transmission






Applications

  • Military applications
  • Marine applications
  • Aviation industry
  • Wrapping machines
  • Measurement instruments




Optional

  • Installation way
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Through bore size











Outline drawing:



Military Aluminium alloy Industrial Slip Ring Solid Through Bore For Display 0
