50 Rpm Industrial Slip Ring 400VDC Voltage Inner Diameter 130mm
  • 50 Rpm Industrial Slip Ring 400VDC Voltage Inner Diameter 130mm
  • 50 Rpm Industrial Slip Ring 400VDC Voltage Inner Diameter 130mm

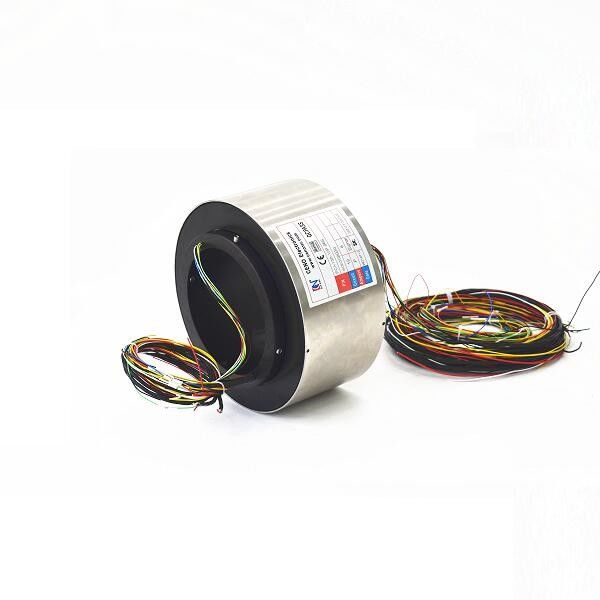

50 Rpm Industrial Slip Ring 400VDC Voltage Inner Diameter 130mm

Place of Origin China
Brand Name CENO
Certification ISO9001
Model Number ECN130-19P-06S
Product Details
Circuit Number:
6*2A,3*8A,4*2A,2*PT100,4*0.5A
Voltage:
0~400VAC/VDC
Contact Material:
Precious Metal
IP Grade:
IP51
Operating Speed:
0~50 Rpm
Housing Material:
Aluminium Alloy
Application:
Large Industry Equipment
Inner Diameter:
130 Mm
Working Temperature:
-20℃~+80℃
High Light:

50 Rpm Industrial Slip Ring

,

400VDC Industrial Slip Ring

,

400VDC custom slip ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Crate/As request
Delivery Time
2 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description



Inner diameter 130mm large hole size slip ring,working speed 0-50 rpm,400VDC voltage,used for industry,sewage,equipment.longer lifetime,can be customized with different solutions.



CENO large size slip rings mean with large hole size,the center hole is available from 0 to 980mm,can be customized according to customer’s requirements.ECN130-19P-06S with inner bore size 130mm,outer diameter 220mm.The contact materials is precious metal,it’s can make sure the transmission performance more stable and lifetime more longer.This kind of large size slip ring with high protection grade is widely used in large industry equipment,packaging machine,material transfer equipment etc.Any special request please contact with us,our email address is mkt@ceno360.com.we will provide you with the best solution.



Specification

ECN130-19P-06S                           Specification
Circuits & Current 6*2A,3*8A,4*2A,2*PT100,4*0.5A
Voltage 0-400VDC
Dielectric strength

≥1000V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@300VDC (signal)

Electrical noise ≤70mΩ
Operating speed 0-50 rpm
Contact material Precious metal
Housing material Aluminum alloy
IP grade IP51
Inner hole size 130 mm






       Features

  • Large hole size 130mm
  • Smooth rotation
  • Long lifetime
  • Stable transmission







Applications

  • Sewage treatment
  • Industry equipment
  • Seaport machine
  • Agricultural equipment




      Optional

  • Installation way
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Through bore size











Outline drawing:



50 Rpm Industrial Slip Ring 400VDC Voltage Inner Diameter 130mm 0

















Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
