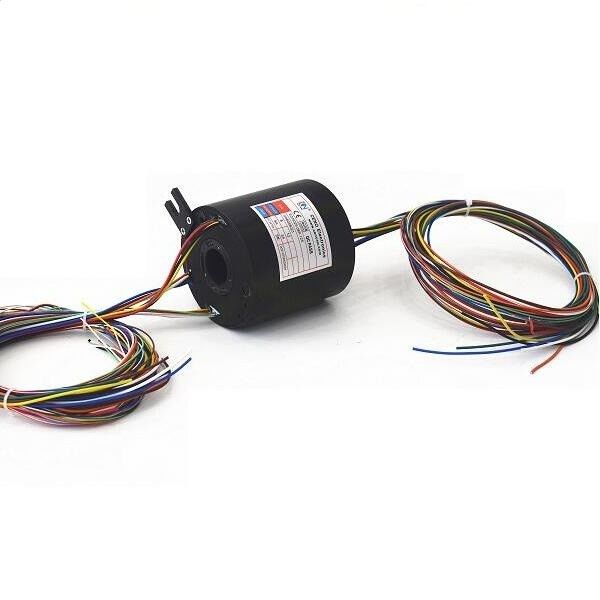

Automation Equipment 300 rpm rotating slip ring With Inner Bore 25.4mm
  • Automation Equipment 300 rpm rotating slip ring With Inner Bore 25.4mm
  • Automation Equipment 300 rpm rotating slip ring With Inner Bore 25.4mm

Automation Equipment 300 rpm rotating slip ring With Inner Bore 25.4mm

Place of Origin China
Brand Name CENO
Certification ISO9001
Model Number ECN025-08P-12S
Product Details
Circuit Number:
8*6A,12*2A
Voltage:
0~480VAC/VDC
Contact Material:
Precious Metal
IP Grade:
IP51
Operating Speed:
0~300 Rpm
Housing Material:
Aluminium Alloy
Application:
Measurement Instruments,medical Equipment
Inner Diameter:
25.4 Mm
Working Temperature:
-20℃~+80℃
High Light:

300 rpm rotating slip ring

,

Inner Bore 25.4mm rotating slip ring

,

Inner Bore 25.4mm rotary slip ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Crate/As request
Delivery Time
2 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description



Automation equipment slip ring with inner bore size 25.4mm,voltage 0~480VAC/VDC,300rpm working speed,longer lifetime,can be customized with different solutions.



Through hole slip ring also called through bore slip ring,hollow shaft slip ring.This type slip ring with inner diameter 25.4mm through hole slip ring with 8*6A,12*2A,Rating voltage 0~480VAC/VDC,Contact materials is precious metal.CENO slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.It’s widely used in radar system,packaging machine,medical equipment.Through hole size can be customized from 3mm to 980mm,current rating and other parameters also can be optional.CENO can provide different customized solution according to customer’s requirements,Please feel free to contact us anytime.









Specification


ECN025-08P-12S                             Specification
Rings 8*6A,12*2A
Voltage 0~480VAC/VDC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium alloy
Working temperature -20℃~+80℃
IP protection grade IP51
Through hole size 25.4mm





Features

  • Smooth rotation
  • Low torque
  • High performance
  • Signal integrated power






Applications

  • Wind power system
  • Military industrial
  • Automation equipment
  • Packaging machine




Optional

  • Installation way
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Through bore size











Outline drawing:



Automation Equipment 300 rpm rotating slip ring With Inner Bore 25.4mm 0
