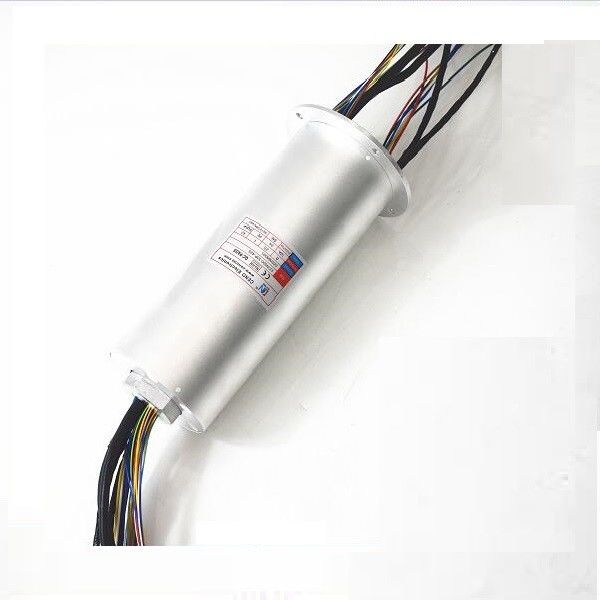

Servo Systems Ip54 Industrial Slip Ring Precious Metal Compact Design
  • Servo Systems Ip54 Industrial Slip Ring Precious Metal Compact Design
  • Servo Systems Ip54 Industrial Slip Ring Precious Metal Compact Design

Servo Systems Ip54 Industrial Slip Ring Precious Metal Compact Design

Place of Origin China
Brand Name CENO
Certification ISO9001
Model Number ECN000-33P-42S
Product Details
Circuit Number:
8*10A,25*2A,26*signal,16*servo Motor
Voltage:
0~380VAC/VDC
Contact Material:
Precious Metal
IP Grade:
IP54
Operating Speed:
0~100 Rpm
Housing Material:
Aluminium Alloy
Application:
Measurement Instruments
Inner Diameter:
Solid Bore
Working Temperature:
-20℃~+60℃
High Light:

Ip54 Industrial Slip Ring

,

100 rpm Industrial Slip Ring

,

100 rpm rotary slip ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Crate/As request
Delivery Time
2 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

Servo Systems Ip54 Industrial Slip Ring Precious Metal Compact Design





Compact design with 16*servo moto slip ring,voltage 0~380VAC/VDC,used for servo systems,motion control process,longlife time.100 rpm working speed,can be customized with different solutions.



In the industry automation processing,especially in servo systems and factory room net works,it need transmission more signals,data,Ethernet to control the motion of the machinery.We use special design technology,precious metal contacts to make sure the high quality transmission of the data,power,Also can use equipment testing the Ethernet,return loose,insert loose etc performance.To make the production in process more easy and correct.CENO can provide different customized solution according to customer’s requirements,Please feel free to contact us anytime.


Specification



ECN000-33P-42S                            Specification
Circuits & Current 8*10A,25*2A,26*signal,16*servo motor
Voltage 0~380VAC/VDC
Electrical noise Max 30mΩ (50rpm)
Dielectric strength

≥1500V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@100VDC (signal)

Operating speed 0-100 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP54
Through hole size Solid through bore





Features

  • Power integrated signal
  • Servo-motor signal
  • Compact design
  • Stable transmission






Applications

  • Flow pack machine
  • Servo systems
  • Lithium battery
  • Motion control process




Optional

  • Installation way
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Through bore size











Outline drawing:



Servo Systems Ip54 Industrial Slip Ring Precious Metal Compact Design 0


















Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
