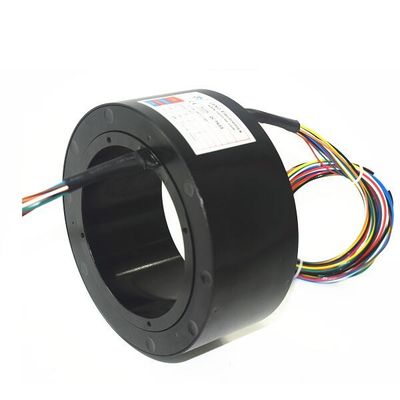

108mm Bore Industrial Slip Ring Aluminium Alloy Housing For Sewage Treatment
  • 108mm Bore Industrial Slip Ring Aluminium Alloy Housing For Sewage Treatment
  • 108mm Bore Industrial Slip Ring Aluminium Alloy Housing For Sewage Treatment

108mm Bore Industrial Slip Ring Aluminium Alloy Housing For Sewage Treatment

Place of Origin China
Brand Name CENO
Certification ISO9001
Model Number ECN108-06P2-08P1
Product Details
Circuit Number:
6*10A,8*5A
Voltage:
220VAC/24VDC
Contact Material:
Precious Metal
IP Grade:
IP51
Operating Speed:
0~60 Rpm
Housing Material:
Aluminium Alloy
Application:
Large Industry Equipment
Working Temperature:
-40℃~+85℃
Inner Bore:
108mm
High Light:

108mm Bore Industrial Slip Ring

,

60 rpm Industrial Slip Ring

,

IP51 through bore slip ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Crate/As request
Delivery Time
2 weeks
Payment Terms
T/T,Paypal, Western Union
Supply Ability
1000pcs per month
Product Description

108mm Bore Industrial Slip Ring Aluminium Alloy Housing For Sewage Treatment



Large inner bore size industrial slip ring with 108mm bore,working temperature -40°C ~ +85°C,used for sewage treatment,military applications,packaging machine etc,.




CENO can design the through bore slip ring reach up to 980mm inner bore.This kind of large bore slip rings represent the union of manufacturing processes and technologies that enable us to offer large & high volume slip rings with advanced features that are cost effective.ECN108-06P2-08P1 with inner bore 108mm,out diameter is 160mm,working temperature range from -40°C~+85°C.it’s also can integrate various of signal such as Canbus,Ethernet,USB,fiber optic etc.Also with high protection grade is widely used in sewage treatment,large material transfer equipment,large industary equipment & other systems. we will provide the best solution to you asap.





Specification





ECN108-06P2-08P1                           Specification
Circuits & Current 6*10A,8*5A
Voltage 220VAC/24VDC
Dielectric strength ≥500V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-60 rpm
Electrical noise ≤30mΩ (50 rpm)
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP51
Through hole size 108 mm
Working temperature -40°C ~ +85°C
Cable length 1000mm on both sides











       Features

  • Stable transmission
  • Long lifetime
  • Smooth running
  • Compact structure







Applications

  • Sewage treatment
  • Military applications
  • Packaging machine
  • Agricultural machinery





      Optional

  • Installation way
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Through bore size









Outline drawing:



108mm Bore Industrial Slip Ring Aluminium Alloy Housing For Sewage Treatment 0


















Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
