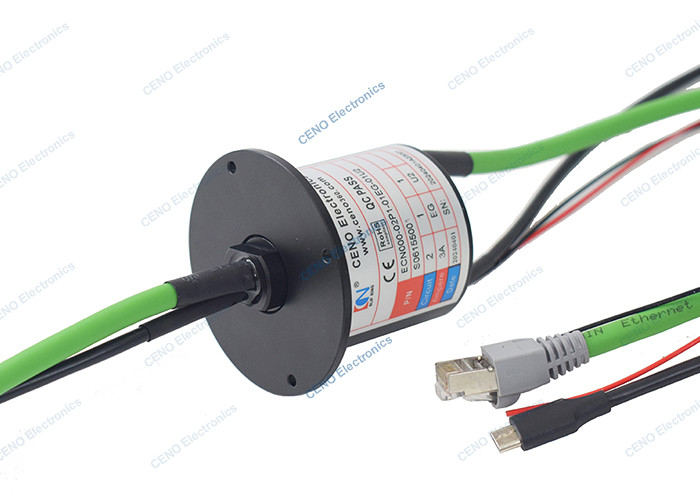

USB 2.0 Signal Slip Ring with 1000M Gigabit Ethernet and Electric Power
ECN000-02P1-01EG-01U2 is CENO new USB Slip Ring which combine 3 circuits 3A, 1 circuit gigabit Ethernet signal with 1 circuit USB2.0 Signal for automatic signal transmission system. CENO’s signal slip ring solutions have been developed to provide reliable products to allow transfer of the Ethernet protocol through a rotating interface. CENO offered a wide range of product solutions about combinations of data and power in multiple mechanical configurations to meet your application needs. More information please contact us.
Features
- Gigabit Ethernet & USB signal design and channels optional
- Can be integrated various data
- High performance contact tech
- Install easy & Free maintenance
Applications
- Automatic machine
- Motion control
- Video over Ethernet
- CCTV IP - surveillance
- Medical equipment
Optional
- Circuits, Voltage, Current
- Signals or data type
- Contact / Housing Materials
- Wire size / length
- Working speed & temperature
Specification
|
ECN000-02P1-01EG-01U2
|
Specification |
| Current & Circuits |
2 circuits * 3A; 1 circuit * 1000M Ethernet; 1 circuit * USB2.0 signal |
| Rating Voltage |
0-24VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz (Current)
≥300VAC@50Hz (Signal)
|
| Isolation resistance |
≥300MΩ@500VDC
≥100MΩ@300VDC
|
| Contact resistance |
≤30mΩ (50rpm) |
| Operating speed |
0~2 rpm |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60 %RH |
| IP protection grade |
IP51 |
| Contact material |
Precious Metal |
| Housing material |
Aluminum alloy |
| Outer Diameter |
Ø50mm |
| Lead wire size |
AWG22# Wire Teflon® UL
CAT5e; USB2.0
|
| Lead wire length |
Rotor: 500mm; Stator: 500mm |
| Installation |
Flange installation |
Outline drawing
