Explosion-proof slip ring is called as the explosion proof conductive slip ring, explosion proof collector ring,
explosion-proof collecting ring or flame-proof slip ring, etc,. It is a kind of conductive slipring with highly reliable security,under working the easy explosive environment such as petroleum,chemical/explosive dust environment.
Features
◆ High safety,high reliability
◆ Protection grade:IP65
◆ Explosion certification is available
◆ Support analog and data signal mixed transmission
Application
◆ Oil platform,marine platform
◆ Package equipment of explosive material
◆ Agriculture processing equipment
Optional
◆ Circuit number
◆ Current rating
◆ Grade of explosion grade
Specification

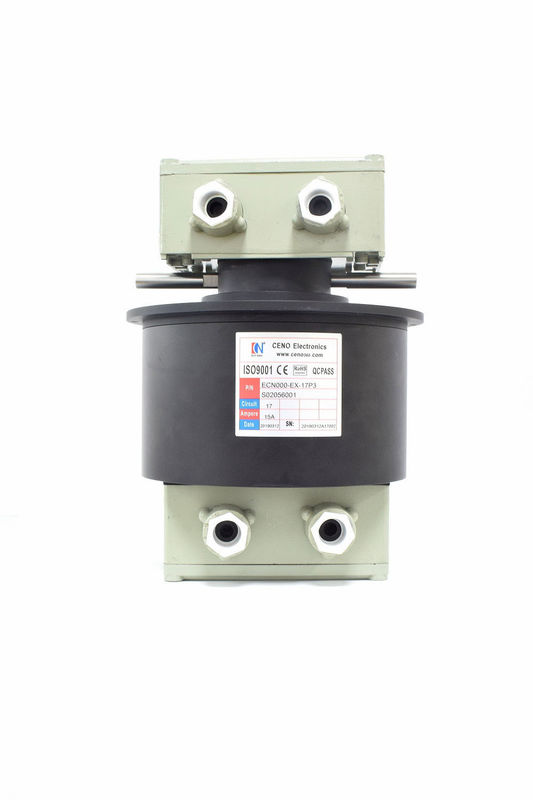

Model: ECN000-EX-17P3 Parameter | |||
Current | 17*5A | Protection Grade | IP65 |
Working Speed | 0~50rpm | Rating Voltage | 380VAC |
Insulation Resistance | ≥500MΩ@100VDC | Dielectric Strength |
≥1000VAC@50Hz
|
Resistance fluctuation | 70MΩ | Contact Material | Precious metal |
Connection mode | terminal | Working Humidity | Below 60%RH |
Product Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
