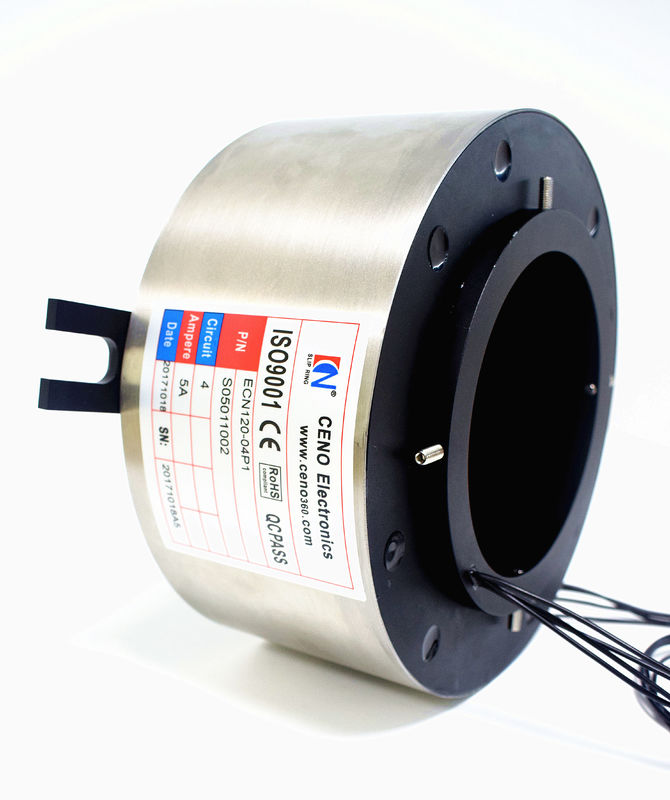

Sewage treatment Industrial Slip Ring 4 * 5A Current With Automotive Wire

Sewage treatment Industrial Slip Ring 4 * 5A Current With Automotive Wire

  • Sewage treatment Industrial Slip Ring 4 * 5A Current With Automotive Wire
  • Sewage treatment Industrial Slip Ring 4 * 5A Current With Automotive Wire
  • Sewage treatment Industrial Slip Ring 4 * 5A Current With Automotive Wire
  • Sewage treatment Industrial Slip Ring 4 * 5A Current With Automotive Wire
Sewage treatment Industrial Slip Ring 4 * 5A Current With Automotive Wire
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN120-04P1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Current: 4*5A Rating Voltage: 380VAC
Working Speed: 0~250rpm Protection Grade: IP65
High Light:

big bore slip ring

,

high voltage slip ring

Big Size Slip Ring With Automotive Wire Widely Be Used  For  Sewage treatment





CENO company produce the industrial conductive slip ring with big size and high reliability,

maintenance free and protection level can reach IP68.



Big  size slip-ring is named for its large size. It gets big through hole size and high protection level, is generally used in larger equipment and systems.The system can be fitted directly to the center of the rotation,to resolve the transmission problem of current and signal. This kind of large size slip ring with high protection grade is widely used in sewage treatment, large material transfer equipment and other systems.





Features

  • High protection grade
  • Could be used outdoor
  • Long lifespan, maintenance-free
  • Various type of signal could be integrated



Application

  • Circuit number
  • Sewage treatment
  • Material delivery equipment




Option

  • Circuit number
  • Current size
  • Protection grade
  • Signal type







Specification





ECN120-04P1                                 Parameter
Circuit 4*5A Protection Grade IP65
Voltage 380VAC Temperature -20℃~+80℃
Insulation Resistance 500MΩ@500VDC Humidity ≤90%RH

Dielectric

Strength

≥1000VAC@50Hz Rotating speed 0~250rpm
Resistance fluctuation ≤70mΩ(50rpm) Contact Material Precious metal
Diameter Ø120 Wire spec FLRY-B automotive wire(0.75mm²)







Outline Drawing



Sewage treatment Industrial Slip Ring 4 * 5A Current With Automotive Wire 0





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Sewage treatment Industrial Slip Ring 4 * 5A Current With Automotive Wire 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Sewage treatment Industrial Slip Ring 4 * 5A Current With Automotive Wire 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
