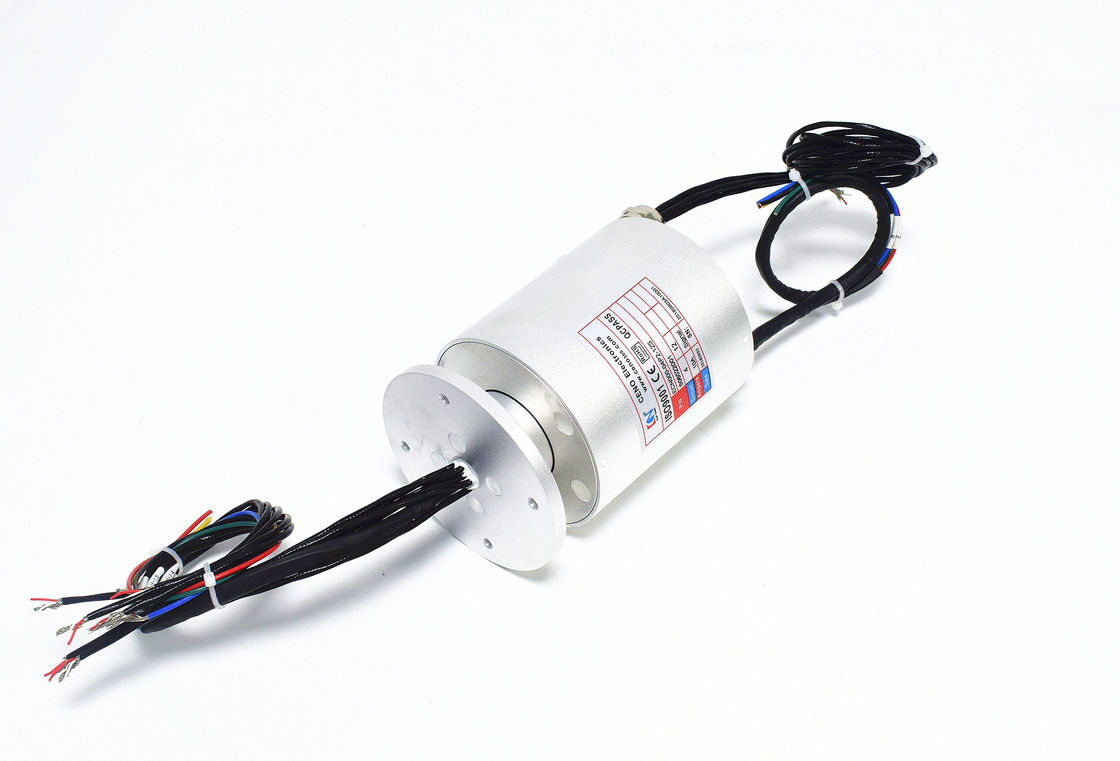

Servo Motor Encoding Slip Ring Integrated Gas Liquid And Encoding Signal
The servo motor encoding slip ring of CENO is designed specifically for the laser testing equipment. For making the weak and easily interfered encoder signals could be transmitted correctly through the slip ring, CENO do specially processing on the internal routing and shielding, so that the packet is not lost and the bit error rate is low.This servo motor encoding slipring for a large number of servo system equipment, because its design has the following characteristics.
Characters
- Improve signal- noise ratio
- Reliable transmission
- Various type servo motor encoding slip-ring could be designed,
- Gas-liquid rotary union could be integrated
Option
- Circuit number
- Protection grade
- Various type signal could be integrated
- Installation way
Application
- Servo motor encoding system
- Testing equipment
Specification
| Parameter |
| Circuit |
4* 10A,12*Encoding signal |
Protection Grade |
IP54 |
| Voltage |
380VAC |
Temperature |
-20°C ~ + 60°C |
| Insulation Resistance |
500 MΩ@500VDC
100 MΩ@300VDC(signal)
|
Rotating speed |
0~40rpm |
| Dielectric Strength |
≥1000 v@50hz
≥300 v@50hz(signal)
|
Contact Material |
Precious metal |
| Electrical Noise |
Max 70 mΩ(50 rpm) |
Housing material |
Aluminum conductive oxide |
| Humidity |
60%RH |
Installation way |
Frank |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
