6 Group Servo Motor Encoder Signal Slip Ring Connector 1~20rpm Working Speed

6 Group Servo Motor Encoder Signal Slip Ring Connector 1~20rpm Working Speed

  • 6 Group Servo Motor Encoder Signal Slip Ring Connector 1~20rpm Working Speed
  • 6 Group Servo Motor Encoder Signal Slip Ring Connector 1~20rpm Working Speed
6 Group Servo Motor Encoder Signal Slip Ring Connector 1~20rpm Working Speed
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN030-28P2-83S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Current: 28*10A , 11*signal,1*PE, 6 Group Servo Motor Encoder Signal Rating Voltage: 0-380VAC/VDC
Working Speed: 1~20rpm Protection Grade: IP54
Temperature: -20°C~+60°C Electrical Noise: ≤30mΩ(50rpm)
High Light:

high voltage slip ring

,

digital slip ring

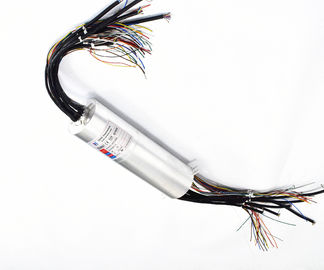

6 Group Servo Motor Encoder Signal Slip Ring Connector





This is servo motor slip ring for automatic winding machine,there are 6 group servo motor encoder signal and 10A power and ordinary signal ,total 118 circuits.through hole size is 30mm,housing material is aluminum alloy,low electrical noise.





Features

  • Easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
  • Low friction, long life,low torque, smooth rotation
  • Transmit data and analog signal,compatible with data bus protocol


Applications

  • Automatic winding machine
  • Lithium battery equipment
  • Industrial automation equipment


Optional

  • Through hole size
  • Circuit number
  • Current rating
  • IP protection grade





Specification



ECN030-28P2-83S  Picture
Current 28*10A , 11*signal,1*PE, 6 group servo motor encoder signal 6 Group Servo Motor Encoder Signal Slip Ring Connector 1~20rpm Working Speed 0
Voltage 0-380VAC/VDC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength

≥1000V@50Hz(power)

≥300V@50Hz (signal)

Insulation resistance

500MΩ@500VDC(power)

100MΩ@100VDC(signal)

Operating speed 0-20 rpm
Contact material precious metals
Operating temperature -20~+60℃
Through bore size 30mm
IP protection grade IP54




Outline Drawing



6 Group Servo Motor Encoder Signal Slip Ring Connector 1~20rpm Working Speed 1







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

6 Group Servo Motor Encoder Signal Slip Ring Connector 1~20rpm Working Speed 2



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

6 Group Servo Motor Encoder Signal Slip Ring Connector 1~20rpm Working Speed 4



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
