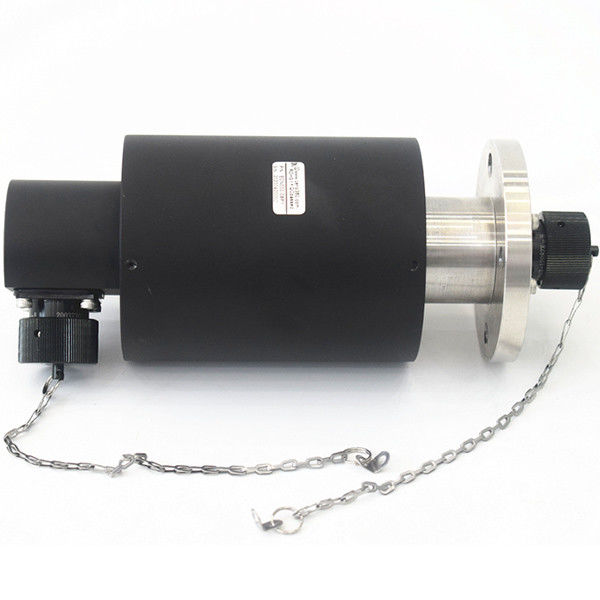

Rotary Connector Components With Aviation Socket
IP 65 high protection grade rotary joint with 304 stainless steel housing material, stainless steel body has good environmental suitability.the rotary joint stator and rotor side are connected to aviation socket to transmit current instead of lead wire, the socket has dust cover to prevent dust. Our solutions are customized to meet the circuits, ratings and other parameters required for your application.We engineer what you need.
Specification
| ECN000-08P1 |
| Current |
8*5A |
| Voltage |
600VAC |
| Electrical noise |
≤30mΩ(50rpm) |
| Dielectric strength |
≥1000V@50Hz |
| Insulation resistance |
500MΩ@500VDC |
| Operating speed |
0-300 rpm |
| Contact material |
precious metals |
| Operating temperature |
-40~+50℃ |
| Housing material |
Stainless steel |
| IP protection grade |
IP65 |
Features
- Stainless steel material
- Aviation socket with dust cover without wire
- Durable, compact and low cost
Applications
- Motion simulator
- Packaging equipment
- Automation equipment
- Medical equipment
Optional
- Housing material
- Current rating
- Installation way
- IP protection grade
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
