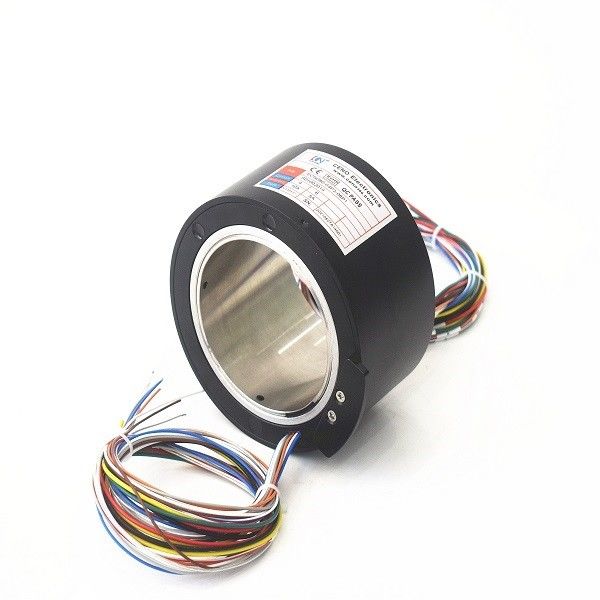

Wrapping Machines 60rpm Through Bore Slip Ring Stainless Steel Housing
  • Wrapping Machines 60rpm Through Bore Slip Ring Stainless Steel Housing
  • Wrapping Machines 60rpm Through Bore Slip Ring Stainless Steel Housing

Wrapping Machines 60rpm Through Bore Slip Ring Stainless Steel Housing

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN080-04P2-08P1
Product Details
Current:
4*10A,8*5A
Through Bore Size:
80 Mm
Protection Grade:
IP54
Working Speed:
0~60rpm
Contact Material:
Precious Metal
Rating Voltage:
0~380VAC/VDC
Housing Material:
Aluminium Alloy + Stainless Steel
Working Temperature:
-40C°~ +60C°
Housing Length:
66 Mm
Highlight:

60rpm Through Bore Slip Ring

,

80mm Through Bore Slip Ring

,

60rpm rotary slip ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description

Wrapping Machines 60rpm Through Bore Slip Ring Stainless Steel Housing



Working speed 60 rpm with 80mm inner bore through bore slip ring aluminum alloy+stainless steel housing ,voltage 380VAC.





Slip rings enable the transfer of electric power or signal across a rotating part, such as those found in radar antennae, gun turrets, periscopes, electro-optic sensor gimbals and space satellites. The sliding contact is established by a brush that presses against a metal ring.This ECN080-04P2-08P1 slip ring with through bore size 80mm, with 60 rpm working speed .it can combine with power.signal.Ethernet,USB,Control Net.CANBUS. PROFIBUS. It could also be mounted by shaft or optional flange mounting.It's widely used for cable reels,wind generators, for the lighting industry,cameras,automotive applications and for research and development.CENO also can provide different solutions according to customer’s requirments,please contact us by email sales@ceno360.com.





Specification




ECN080-04P2-08P1 Specification
Circuits & Current 4*10A,8*5A
Voltage 0~380VAC
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@300VDC
Electrical Noise Max 70 mΩ (50 rpm)
Operating speed 0-60 rpm
Contact material Precious metal
Housing material Aluminum alloy + stainless steel
IP grade IP54
Inner bore size 80 mm
Installation way Shaft mounting







   Features

  • Compact 66mm length
  • 80 mm through bore
  • Mounted by shaft
  • Stable transmition











Applications

  • Military applications
  • Marine applications
  • LED lighting
  • Wrapping machines








Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material













Outline Drawing







 Wrapping Machines 60rpm Through Bore Slip Ring Stainless Steel Housing 0



























Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
