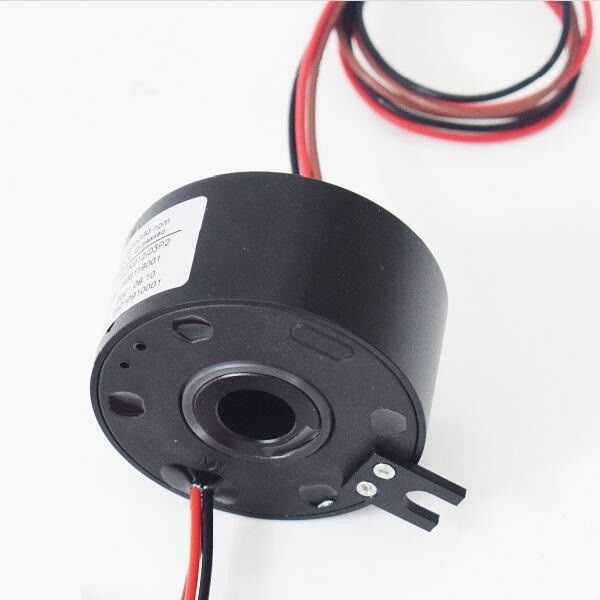

Compact 380V Through Hole Electrical Rotary Joint With 12.7mm Hole
  • Compact 380V Through Hole Electrical Rotary Joint With 12.7mm Hole
  • Compact 380V Through Hole Electrical Rotary Joint With 12.7mm Hole

Compact 380V Through Hole Electrical Rotary Joint With 12.7mm Hole

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN012-03P2
Product Details
Current:
3*10A
Through Bore Size:
12.7 Mm
Protection Grade:
IP51
Working Speed:
0~300rpm
Contact Material:
Precious Metal
Rating Voltage:
0~230VAC/VDC
Housing Material:
Aluminium Alloy
Working Temperature:
-20C°~ +60C°
Outer Diameter:
56mm
Highlight:

Through Hole Electrical Rotary Joint

,

380V Through Hole Electrical Rotary Joint

,

380V rotary slip ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description

Compact 380V Through Hole Electrical Rotary Joint With 12.7mm Hole



Through hole electrical rotary joint with 12.7mm hole,300rpm working speed,aluminium housing,used for display table,medical machine,military industrial and process control equipments.





A through hole slip ring can be used in any electromechanical system that requires continuous rotation while transferring power and or data.Slip ring is also called a rotary electrical joint,collector,commutator or swivel.Slip ring can improve system performance by simplifying operation and eliminating damage prone wires.ECN012-03P2 provides an economical,readily available solution when a compact through bore configuration is required.This unit provides a 12.7mm through bore for routing hydraulic or pneumatic lines and a compact 56mm outside diameter for minimal space applications.It’s can integrated Ethernet,USB2.0, HDMI,fieldbus signal.CENO can provide other customized solutions according customer’s requirements.






Specification





ECN012-03P2 Specification
Rings 3*10A
Voltage 0~230VAC/VDC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium alloy
Working temperature -20℃~+60℃
IP protection grade IP51
Through hole size 12.7mm










Features

  • 12.7mm inner diameter
  • Smooth rotation
  • High performance

  • Compact structure




Applications

  • Exhibit Display machinery
  • Packaging machine
  • Medical equipment
  • Rotation tab
  • Process control equipment
  • Military industrial
  • Rotary index tables
  • Process control equipment






Optional

  • Through hole size
  • Current rating
  • Signal type
  • IP protection grade









Outline Drawing







 Compact 380V Through Hole Electrical Rotary Joint With 12.7mm Hole 0

















Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
