Through Hole Slip Ring
>
|
| Place of Origin | China |
| Brand Name | CENO |
| Certification | CE,RoHS,ISO9001,UL |
| Model Number | ECN030-05P |

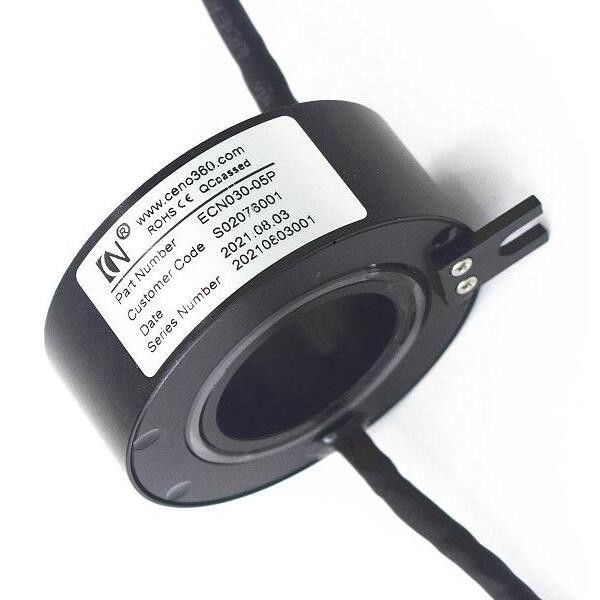

IP51 220VAC Through Hole Slip Ring 300rpm With Inner Bore 30mm
Rotary electrical joint with inner bore 30mm,220VAC voltage & working speed 300rpm with smooth rotation,used for cable reels,military industrial and process control equipments.
A through hole slip ring can be used in any electromechanical system that requires unrestrained.Slip ring is also called a rotary electrical joint,collector,commutator or swivel,slip ring can improve system performance by simplifying operation and eliminating damage prone wires.ECN030-05P provides an economical,readily available solution when a compact through bore configuration is required.This unit provides 30 mm through bore for routing hydraulic or pneumatic lines and a compact 60mm outside diameter for minimal space applications.CENO also can provide other customized solutions according customer’s requirements,please contact us by email sales@ceno360.com.
Specification
| ECN030-05P Specification | |
| Rings | 5*2A |
| Voltage | 0~220VAC/VDC |
| Electrical noise | ≤30mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| Working temperature | -20℃~+60℃ |
| IP protection grade | IP51 |
| Through hole size | 30 mm |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
