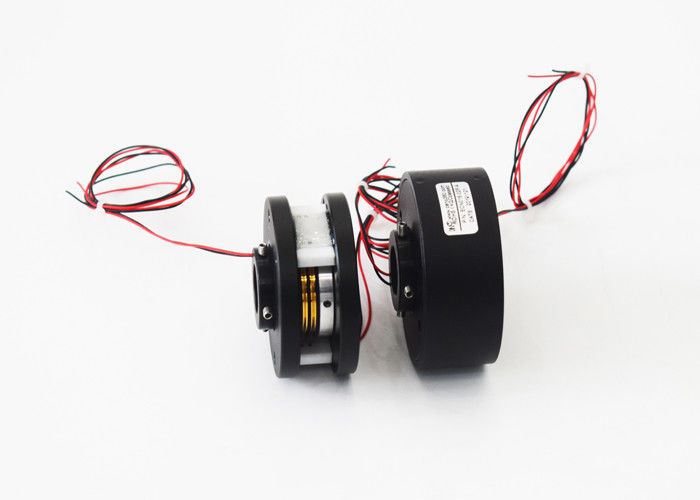

IP54 24VAC Through Hole Slip Ring Rotary Joint Electrical Connector
  • IP54 24VAC Through Hole Slip Ring Rotary Joint Electrical Connector

IP54 24VAC Through Hole Slip Ring Rotary Joint Electrical Connector

Place of Origin China
Brand Name CENO
Certification CE,RoHS,ISO9001,UL
Model Number ECN013-04P2-12S
Product Details
Current:
4*10A,12*1A
Through Bore Size:
13mm
Protection Grade:
IP54
Working Speed:
0~300rpm
Rating Voltage:
0~24VAC/VDC
Outer Diameter:
56mm
High Light:

IP54 Through Hole Slip Ring

,

24VAC Through Hole Slip Ring

,

IP54 through bore electrical slip ring

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton/As request
Delivery Time
1 week
Payment Terms
T/T,Paypal, Western Union
Supply Ability
500pcs per month
Product Description

 IP54 24VAC Through Hole Slip Ring Rotary Joint Electrical Connector

Competitively priced customized through hole slip ring with 13mm ID,IP54,300rpm working speed,used for medical machine,cable reel,military industrial and process control equipments.




In the industry automation processing,it’s need transmission many kinds signals,different data,Ethernet to control the motion of the machinery.we use special design technology,gold to gold contact to make sure the high quality transmission of the data,power,We also can use equipment testing the Ethernet,return loose,insert loose etc performance.To make the production in process more easy and correct.CENO can provide you with different customized slip rings.the center hole is available from 0 to 980mm,it’s used for pass through the drive shaft,gas liquid passage,also can integrate with high frequency,fiber,encoder,wave guide,gas and liquid and other joints.It’s widely used for medical equipment,rotation table,industry machine etc,.






Specification





ECN013-04P2-12S                         Specification
Circuits & Current 4*10A,12*1A
Voltage 0-24VAC/VDC
Dielectric strength

≥1000V@50Hz (power)

≥500V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥300MΩ@100VDC (signal)

Electrical noise ≤30mΩ (50 rpm)
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminum alloy
IP grade IP54
Working temperature -20℃~+80℃
Through bore size 13mm









 Applications

  • Automotive applications
  • Military industry
  • Windpower system
  • Packaging machine
  • Medical machine
  • Industry equipment




Optional

  • Through hole size
  • Current rating
  • Signal type
  • IP protection grade










Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
